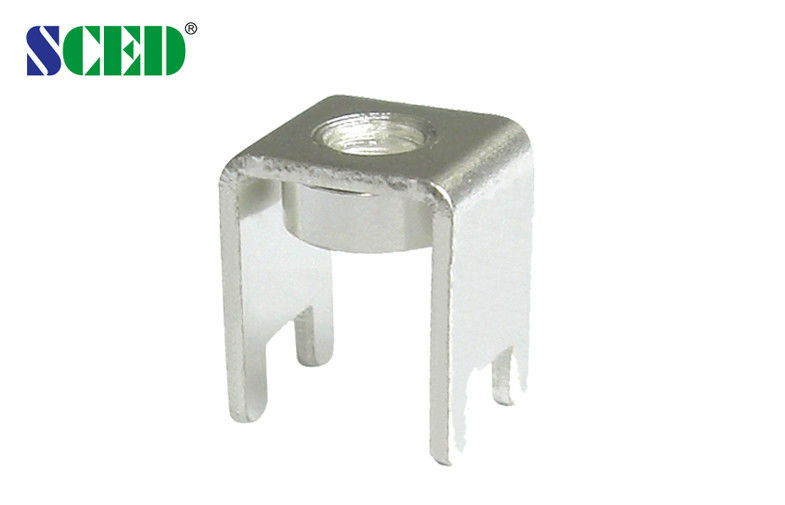

High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components

High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components

    • High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components
    • High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components
  • High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL,CE
    Model Number: AO-15/4J-N5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.165-0.321 PER PC
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198m
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 10000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Center Space: 10.0*16.5mm Rated Current: 100A
    Screw: M6 Screw Torque: 18 Lbf.in
    Terminal Body: Brass Terminal Body Plating: Tin Plated
    Screw Material: Steel Screw Plating: Nickel Plated

    High Current Terminal Block Accessories 100A 10.0mm*16.5mm Space Electrical Components



    Detailed product Description:



    Terminal Accessories, PCB terminal, Electrical components



    Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



    Applications:



    Our products can be used in lots of fields and industries, such as: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

    .

    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand.

    High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components
