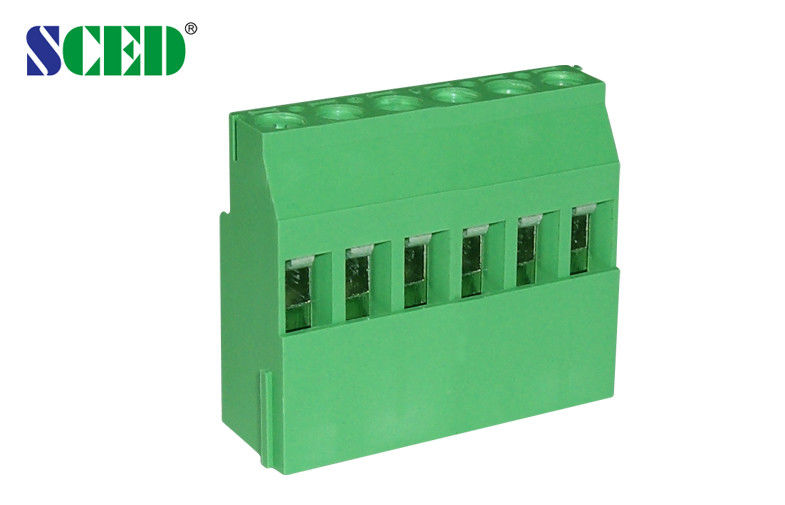

Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

    • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
    • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
  • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE
    Model Number: TJ508-08V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.051-0.120 PER POLE
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 5.08mm Voltage: 300V
    Current: 10A Wire Range: 12-26 AWG
    Plastic: PA66 Screw: M3
    Torque: 4.4-5.3 Lbf.in Contact Resistance: Less Than 8mΩ
    Insulation Resistance: Above DC500V, 500MΩ Inflammability Class: UL94, V-0

    Euro Type PCB Screw Terminal Block 300V 15A Green 5.08mm Pitch Brass



    Detailed product Description:



    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

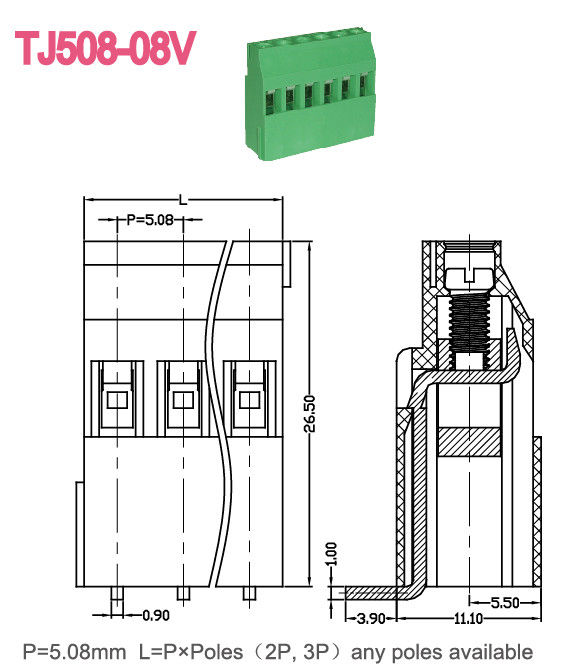

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.6
    Stripping Length mm 7-8
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand


    Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
