    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL,CUL,CQC,VDE,CE etc.
    Model Number: TB762-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Grey Pitch: 7.62mm
    Voltage: 300V Current: 15A
    Plastic: PBT Screw: Steel
    Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ
    Poles: 6-21 Poles Rated Surge Voltage: No Abnormal Within 1 Minute



    Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A



    Detailed product Description:

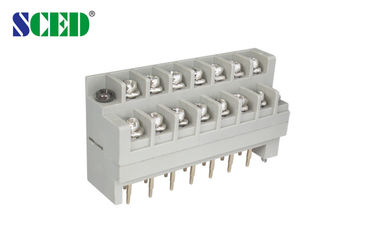

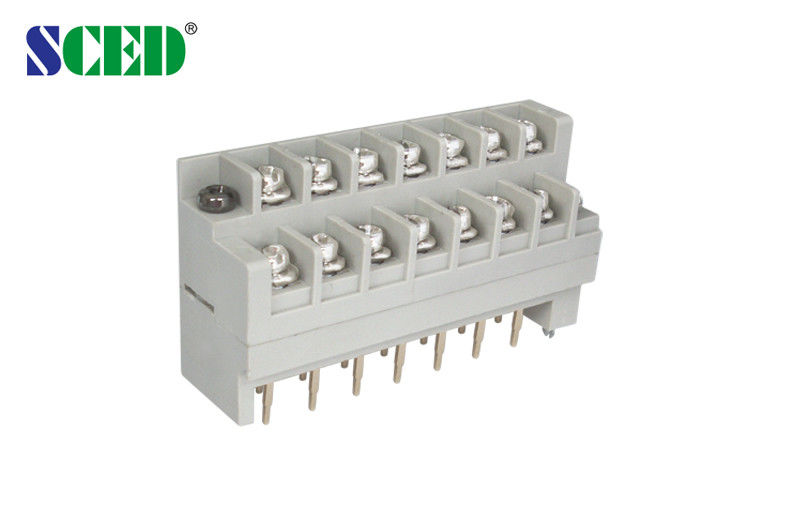

    Pitch 7.62mm, 300V 15A, 4*6P-20*21P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    □Single Level;  ■Double levels;  □Triple levels

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
