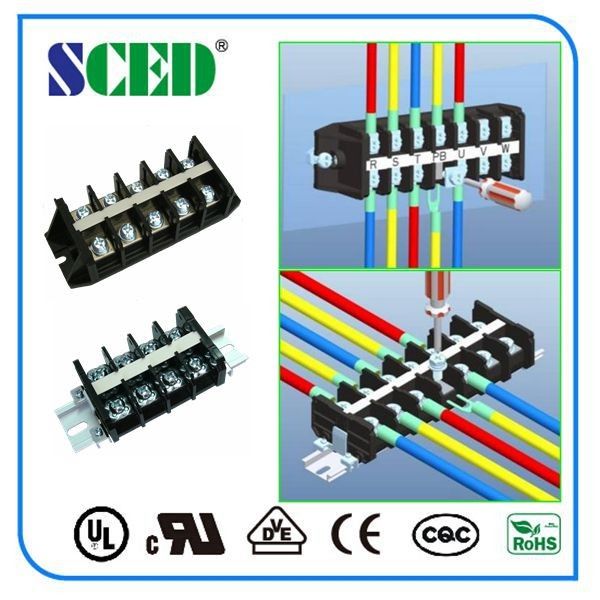

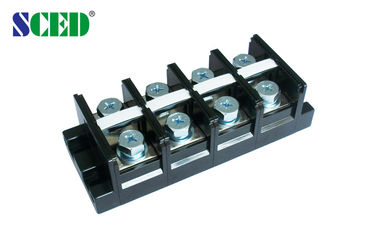

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black

    • 600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
    • 600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
  • 600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE, CQC
    Model Number: TR240-00-BM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Panle Mount Type Pitch: 24.00mm
    Poles: Any Poles Materail: PC
    Color: Black Screw: M10



    600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black





    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 240 600 / 240
    Wire Range AWG 4-250kcmil 4-250kcmil
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 1000 /240 1000 / 240 1000 / 240
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 125
    Material
    Insulation Material / Inflammability Class PC / UL94, V-0
    Conduction Board/ Plating Brass /Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 18-20
    Screw Torque mm M10 / 50-60







    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:



    600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
