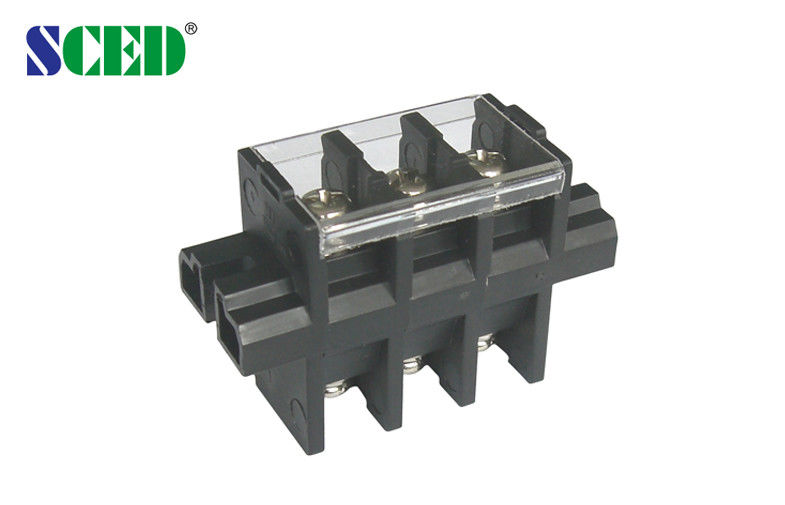

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT

    • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw  Brass PBT
    • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw  Brass PBT
  • 40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw  Brass PBT

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,CUL, UL, CQC, VDE etc.
    Model Number: TD40-01-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.233-0.466 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Current: 40A Voltage: 600V
    Pitch: 13mm Screw: M5
    Torque: 16-18 Lbf.in Stripping Length: 8-10mm
    Plastic: PBT Inflammability Class: UL94-V0
    Conduction Board: Brass Wire Range: 8-22 AWG



    40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT



    Detailed product Description:



    Pitch 13.0mm, 600V 40A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors



    Decks: ■Single Deck; □Double decks; □Triple decks

    Standard color: Black.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw  Brass PBT

    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

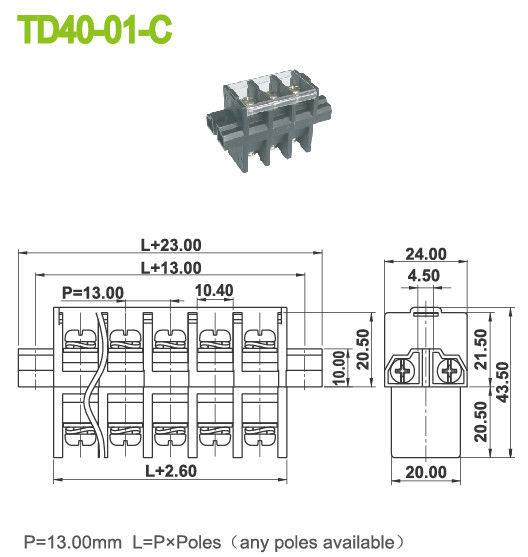

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
    Wire Range AWG 8-22 8-22 8-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 8
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Conduction Board / Plating Brass / Nickel Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    Stripping Length mm 8-10
    Screw / Torque / lbf.in M5 / 16-18



    Competitive Advantage:



    1. Quickly response
    2. Full range products for selection
    3. Flexible to design the exact part per customers’ demand
    4. Stable quality and competitive price

    40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw  Brass PBT
