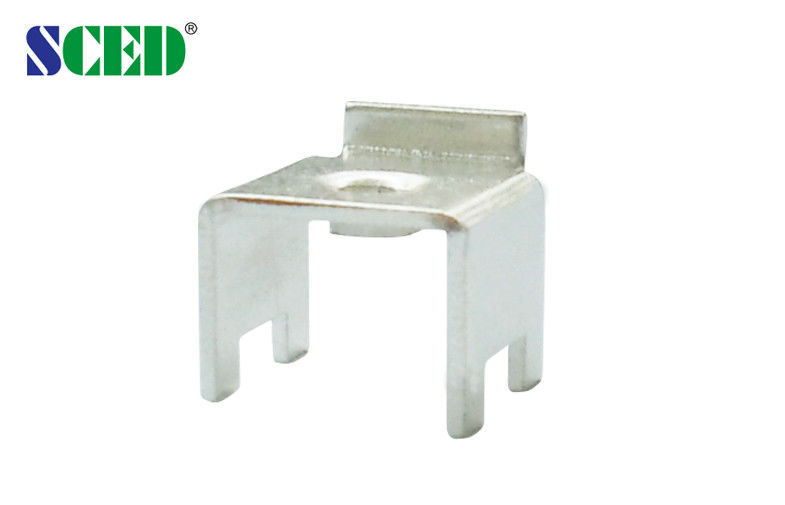

Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space

Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space

  • Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space
Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: AO-10/4J-N11
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.076-0.142 PER PCS
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Center Space: 5.0*13.2mm Rated Current: 70A
Contact Resistance: Less Than 8mΩ Insulation Resistance: Above DC500V, 500MΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Screw: M4
Screw Material: Steel Screw Torque: 10 Lbf.in
Terminal Body: Brass Plating: Tin Plated
High Light:

wire terminal block connectors

,

din rail mounting accessories

Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space



Detailed product Description:



Terminal Accessories, PCB terminal, Electrical components



Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



Applications:



Our products are widely used in Military, Security, Communication, Medical Equipment, Power Supply, PCB, Frequency Converters, Server Site, Switch, Electric Lighting, Industry Control, Automation, Elevator, Rail Transportation and so on.



Competitive Advantage:



  1. Flexible to design the exact part per customers' demand
  2. Quickly response
  3. Stable good quality
  4. Competitive price
  5. Full range products for selection
