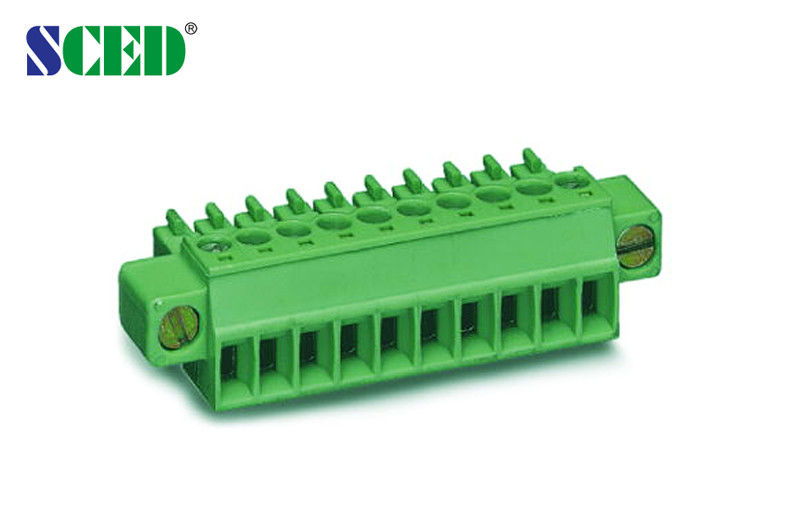

Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green

Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green

    • Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green
    • Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green
  • Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE, CUL, CQC and VDE etc.
    Model Number: TP381P-20F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.05-0.1 PER PCS
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Type: Female Part
    Pitch: 3.5mm Voltage: 300V
    Current: 8A Wire Range: 16-30 AWG
    Screw Torque: 2-2.2 Lbf.in Screw: M2
    Insulation Material: PA66 Clamp Cage: Brass

    Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green



    Detailed product Description:



    Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    LEVELS: ■Single Level; □Double Levels; □Triple Levels



    This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF



    Standard color: Green.



    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green

    Applications:



    Our products can be used in Server Site, Security, Communication, Power Industrial, Energy Conservation, PCB, Electronics etc.

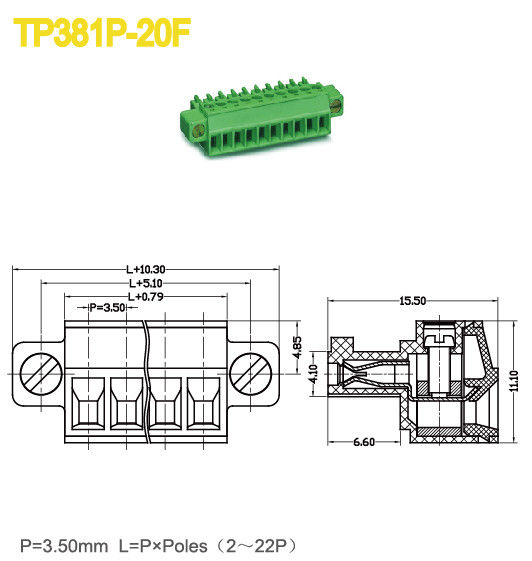

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    Wire Range AWG 16-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Contactor / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M2 / 2-2.2



    Competitive Advantage:



    1. Flexible to design the exact part per customers’ demand
    2. Stable good quality and competitive price
    3. R&D ability
    4. More than 1000 models for selection
    5. Good service and quick response

    Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green
