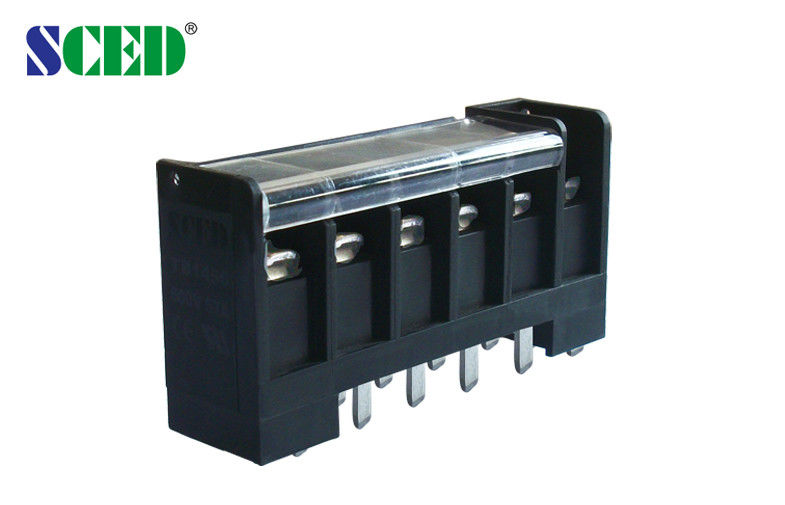

Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles

Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles

    • Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles
    • Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles
  • Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: UL,CE etc.
    Model Number: TB1450-00-D5-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.253-0.56 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Screw: M5 Torque: 18-20 Lbf.in
    Color: Black Current: 40A
    Voltage: 600V Pitch: 14.5mm
    Poles: 4-14 Poles Wire Range: 22-8 AWG
    Plastic: PBT Terminal: Brass

    American Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles



    Detailed product Description:



    Pitch 14.50mm, 600V 40A, 4-14P, Barrier Terminal Blocks, Power Terminal Blocks

    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Levels: ■Single Level; □Double levels; □Triple levels

    Standard color: Black.

    Other colors are also available, please refer to below How to Order and select the color you want.



    How to order:

    Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles

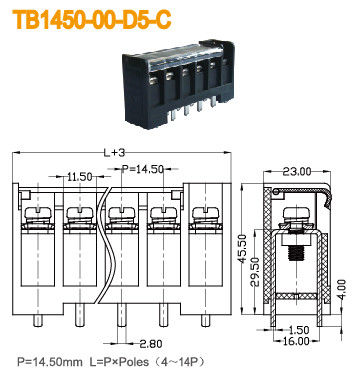

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
    Wire Range AWG 202-8 22-8 22-8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 40 800 / 40 1000 / 40
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 6
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm 1.9x3.2
    Stripping Length mm 12-15
    Screw / Torque / lbf.in M 5 / 18-20



    Applications:



    Generally speaking, our products can be used in below fields:

    1. Power Supply, Communication, Automation, Industrial Control

    2. PCB, Medical Equipment, Switch, Server Site

    3. Elevator, Military, Security, Rail Transportation etc.



    Competitive Advantage:



    1. Years of experience in designing and manufacturing
    2. 10 main series and more than 1000 models
    3. High stable quality and competitive price
    4. R&D abilities
    5. ISO,CE,UL, CUL, CQC, VDE, ROSH etc.
    6. OEM and ODM service
    7. Good after-sales service

    Power Barrier Terminal Block Black 14.5mm Pitch 40A with Cover 4-14 Poles
