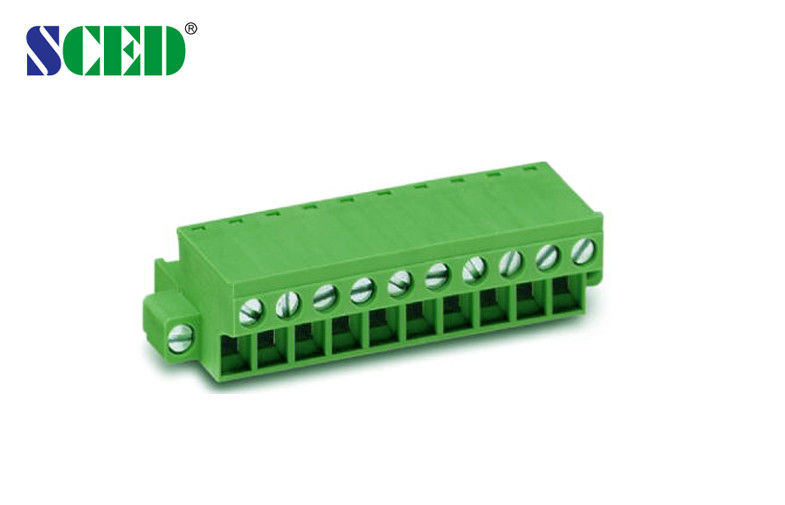

Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color

Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color

    • Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color
    • Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color
  • Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC and VDE etc.
    Model Number: TP508P-05F

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.079-0.158 PER POLE
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Poles: 2-22 Poles Screw: M2.5
    Torque: 3-3.5 Lbf.in Stripping Length: 10mm
    Insulation Material: PA66 Current: 18A
    Wire Range: 12-30 AWG Voltage: 300V
    Pitch: 5.08mm Color: Green

    Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color



    Detailed product Description:



    Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    ■Single Level; □Double Levels; □Triple Levels



    This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF



    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color

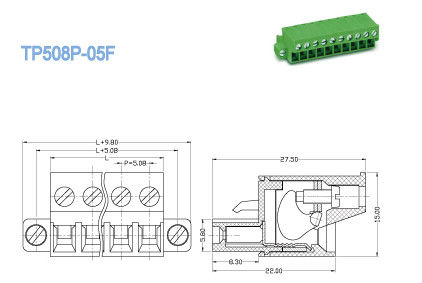

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/18
    Wire Range AWG 12-30   12-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Steel / Nickel Plated
    Contactor / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 10
    Screw / Torque / lbf.in M2.5 / 3-3.5



    Competitive Advantage:



    1. Quickly response
    2. Full range products for selection
    3. OEM and ODM service
    4. Competitive price and good quality

    Applications:

    Communication, Security, Power Supply, PCB, Frequency Converters, Automation, Server Site, Switch and Industrial Control and so on.
