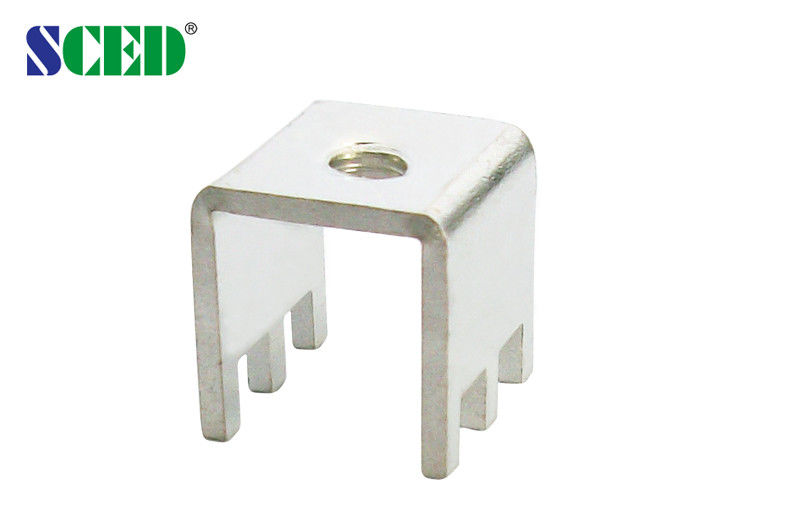

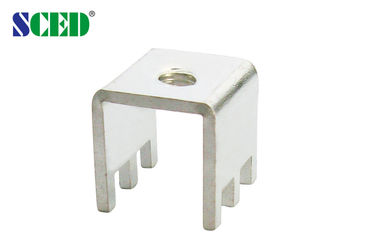

85A Brass Terminal Block Accessories Metal PCB Electrical Components M5 Screw

85A Brass Terminal Block Accessories Metal PCB Electrical Components M5 Screw

  • 85A Brass Terminal Block Accessories Metal PCB Electrical Components M5 Screw
85A Brass Terminal Block Accessories Metal PCB Electrical Components M5 Screw
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: CE, UL etc.
Model Number: AO-15/6J-N3
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD 0.152-0.304 PER PCS
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Center Space: 6.25*13mm Rated Current: 85A
Screw: M5 Screw Material: Steel
Screw Plating: Nickel Plated Terminal Body: Brass
Terminal Body Plating: Tin Plated Screw Torque: 18.lbf.in
High Light:

wire terminal block connectors

,

din rail mounting accessories

Brass Terminal Block Accessories Metal Parts PCB Electrical Components



Detailed product Description:



Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:



85A Brass Terminal Block Accessories Metal PCB Electrical Components M5 Screw 0



Competitive Advantage:



  1. Stable good qualit and competitive price
  2. Quickly response
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand
