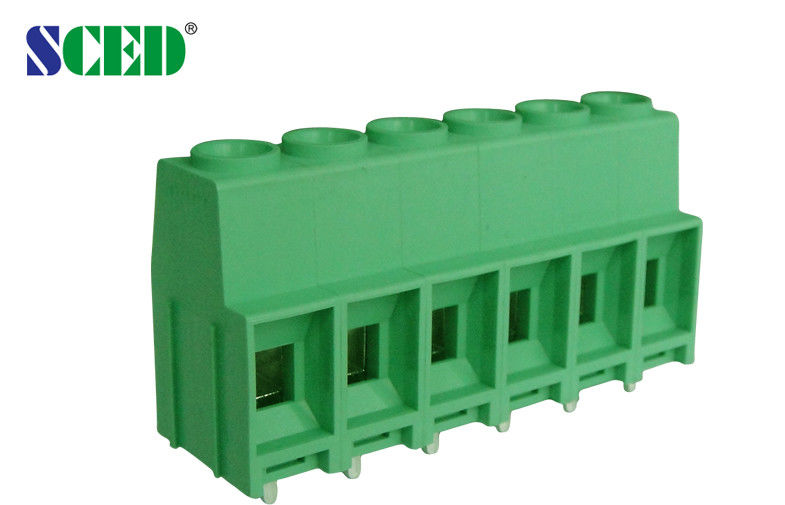

Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles

Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles

    • Pitch 10.16mm PCB Screw Terminal Block  Euro Type Raising Series 57A 2-16 Poles
    • Pitch 10.16mm PCB Screw Terminal Block  Euro Type Raising Series 57A 2-16 Poles
  • Pitch 10.16mm PCB Screw Terminal Block  Euro Type Raising Series 57A 2-16 Poles

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE, UL, CUL, CQC and VDE etc.
    Model Number: TJ952-04-A1

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.114-0.228 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Spacing: 10.16mm Color: Green
    Wire Range: 6-22 AWG Current: 57A
    Stripping Length: 9-11mm Screw: M4
    Poles: 2-16 Poles Plastic: PA66
    Clamp Cage: Brass Insulation Resistance: Above DC500V, 500MΩ

    Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles





    Detailed product Description:



    Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    Wre Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Decks: ■Single Deck; □Double decks; □Triple decks

    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

    Pitch 10.16mm PCB Screw Terminal Block  Euro Type Raising Series 57A 2-16 Poles



    Applications:

    Our products can be used in Power Supply, Military, Security, PCB, Automation, Communication, Industrial Control, Medical Equipment etc.

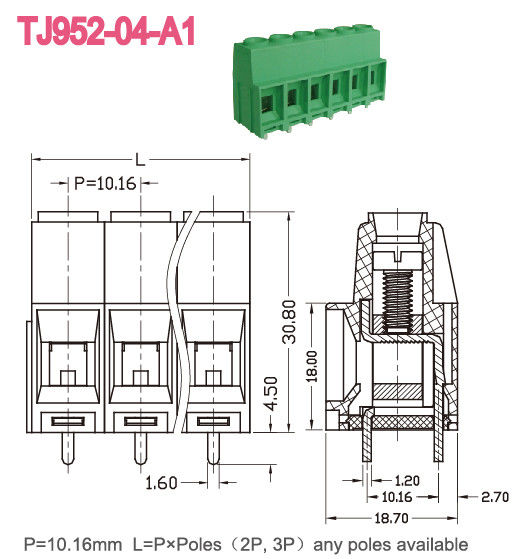

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/57 300/57
    Wire Range AWG 6-22 6-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 630 / 57 1000 / 57 1000 / 57
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 10
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ2.2
    Stripping Length mm 9-11
    Screw / Torque / lbf.in M4 / 10.6-13



    Competitive Advantage:



    1. Flexible to design the exact part per customers’ demand
    2. More than 1000 models for selection
    3. Good quality and competitive price
    4. Quick response

    Pitch 10.16mm PCB Screw Terminal Block  Euro Type Raising Series 57A 2-16 Poles
