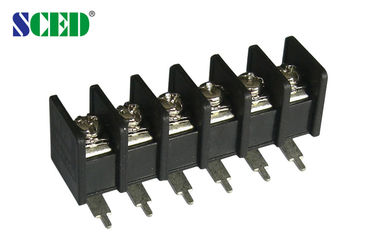

7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector

7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector

    • 7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
    • 7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
  • 7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-01V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 7.62mm Color: Black
    Number Of Contacts: 2P-24P Wire Range: 14-22AWG
    Rated Voltage: 300V Rated Current: 15A
    Key Words: Barrier Terminal Block, Power Terminal Block Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    7.62mm Electrical Barrier Terminal Block for Server Site 300V 15A Screw Fence Connector

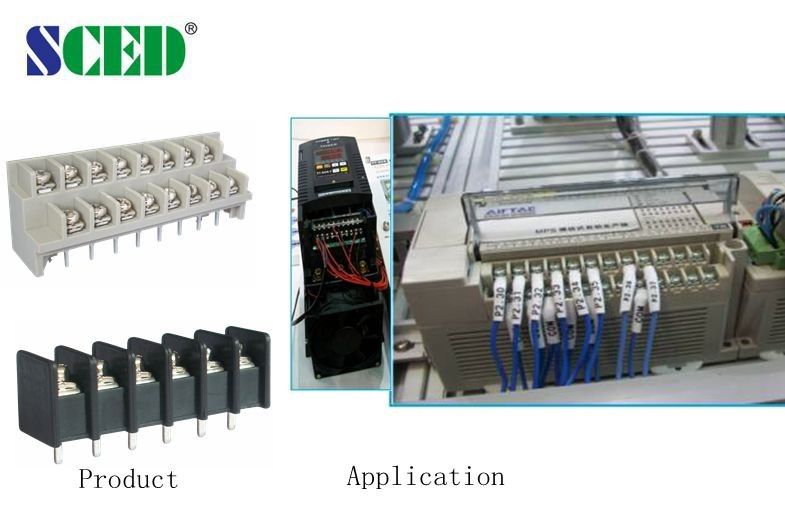

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
     Elevator, etc..



    2-24Poles

    □Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
    ■Single Level; □Double levels;  □Triple levels


    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you

     want.




    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers


    How to order:

    7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector


    Parameter:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                               AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                      KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                   mm

    φ1.5

    Stripping Length                       mm

    7-8

    Screw / Torque                      / lbf.in

    M 3 / 5-7




    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    Drawing Photo



    7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
