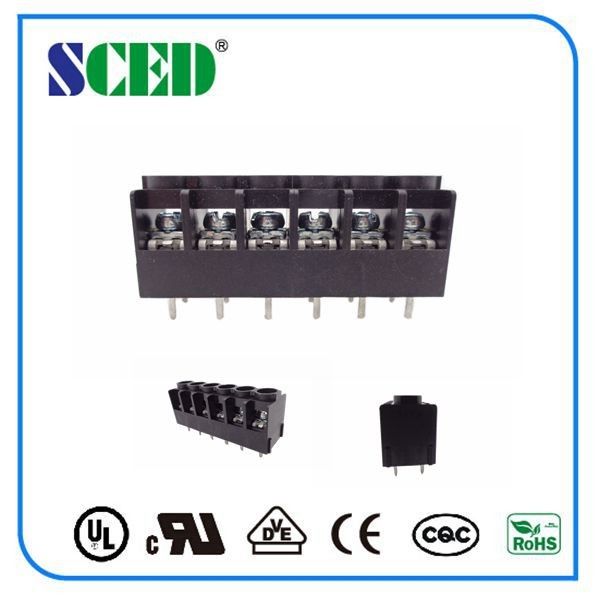

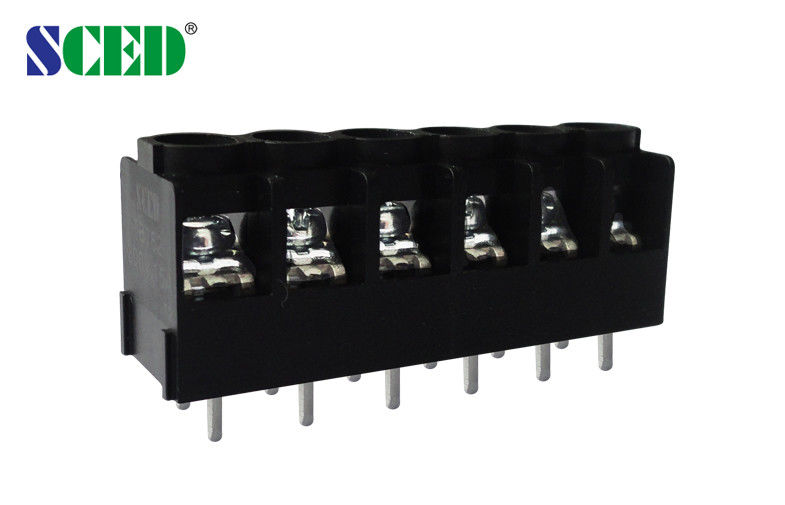

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

    • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters
    • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters
  • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get the latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Rated Current: 15A Rated Voltage: 300V
    Type: Barrier Terminal Block Wire Range: 14-22 AWG

    7.50mm Barrier Terminal Block Black Screw Clamp Connector For Small Industrial Project





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                               AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                  V/A

    400 / 24

    630 / 17

    630 / 24

    Rated Surge Voltage                      KV

    6

    6

    4

    Rated Connecting Capacity           mm2

    2..5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Zinc plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    8-9

    Screw / Torque                    / lbf.in

    M 3 / 5-7







    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

     7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters





    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

     7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
