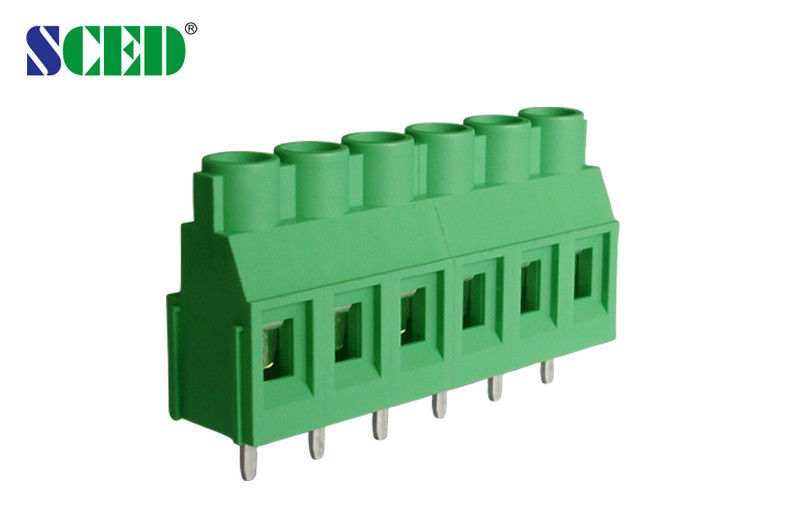

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

    • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
    • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
  • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TJ952-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.051-0.12 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 9.52mm Pitch: 9.52mm
    Color: Green Color: Green
    Plastic: PA66 Plastic: PA66
    Inflammability Class: UL94-V0 Inflammability Class: UL94-V0
    Screw: M3 Screw: M3
    Stripping Length: 7-8mm Stripping Length: 7-8mm
    Terminal: Brass Terminal: Brass
    Contact Resistance: Less Than 8mΩ Contact Resistance: Less Than 8mΩ
    Rated Surge Voltage: No Abnormal Within 1 Minute Rated Surge Voltage: No Abnormal Within 1 Minute
    Nsulation Resistance: Above DC500V, 500MΩ Nsulation Resistance: Above DC500V, 500MΩ

    9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3



    Detailed product Description:



    Pitch 9.52mm, 300V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series

    Wire Inlet: ■Right angle wire inlet

    Decks: ■Single Deck

    Standard color: Green.

    Other colors can be also available, please refer to below How to Order and select the color you want.



    How to order:

    9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

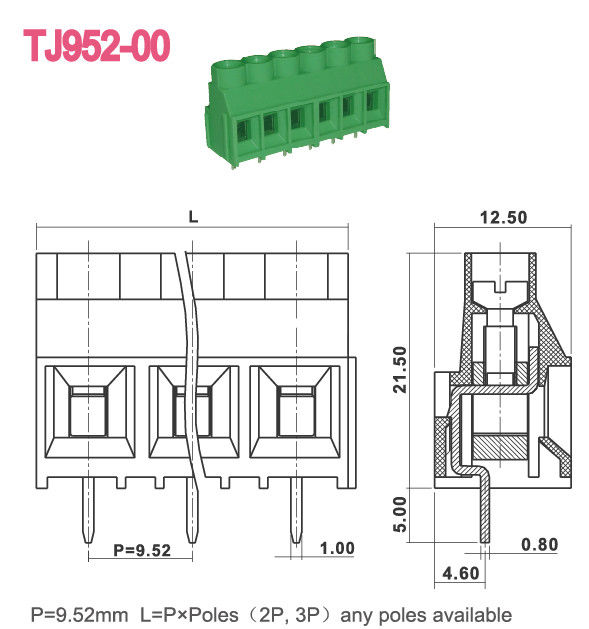

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 30 300 / 30
    Wire Range AWG 10-30 10-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 630 / 30 1000 / 30 1000 / 30
    Rated Surge Voltage KV 6 8 6
    Rated Connecting Capacity mm2 4.0
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Stripping Length mm 7-8
    Screw / Torque / lbf.in M3 / 4.4-5.3





    Applications:



    1. Automation, PCB, Medical Equipment

    2. Industrial Control, Security, Power Supply

    3. Serve Site, Switch, Rail Transportation

    4. Communication, Electric Lighting, Frequency Converters

    5. Elevator and CCTV and so on.



    Competitive Advantage:



    1. Years of experience in designing and manufacturing
    2. More than 1000 models for selection
    3. OEM and ODM service
    4. Quick delivery
    5. Good after-sales service
    6. Stable high quality
    7. Competitive price
