| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | CE,UL |
| Model Number: | TJ500-05 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.032-0.064 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 5.0mm | Poles: | 2-24 Poles |
|---|---|---|---|
| Color: | Grey | Voltage: | 300V |
| Current: | 10A | Wire Range: | 16-26 AWG |
| Insulaton Material: | PA66 | Insulation Resistance: | Above DC500V, 500MΩ |
| Rated Surge Voltage: | No Abnormal Within 1 Minute | Contact Resistance: | Less Than 8mΩ |
| High Light: | screwless terminal block connector,spring terminal block connector |
||

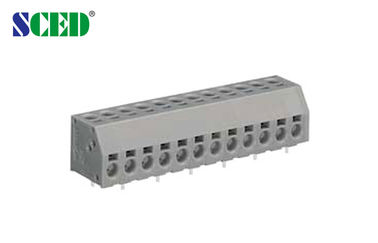

Pitch 5.0mm Spring Screwless Terminal Block 300V 10A 2-24 Poles 16-26 AWG
Detailed product Description:
Pitch 5.00mm, 300V 10A, 2P-24P, Spring Terminal blocks, Screwless terminals
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 16-26 | 16-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 10 | 320 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Spring / Plating | Stainless Steel / - | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.7 | ||
| Stripping Length mm | 8.5-9.5 | ||
Competitive Advantage:
1. More than 13 years of experience in designing and manufacturing
2. OEM and ODM service
3. More than 1000 models for selection
4. Good quality and competitive price
Applications:
Normally our products can be used in below fileds and industries:
Medical Equipment, Military, PCB, Security, Frequency Converters, Automation, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Rail Transportation and Communication and so on.
