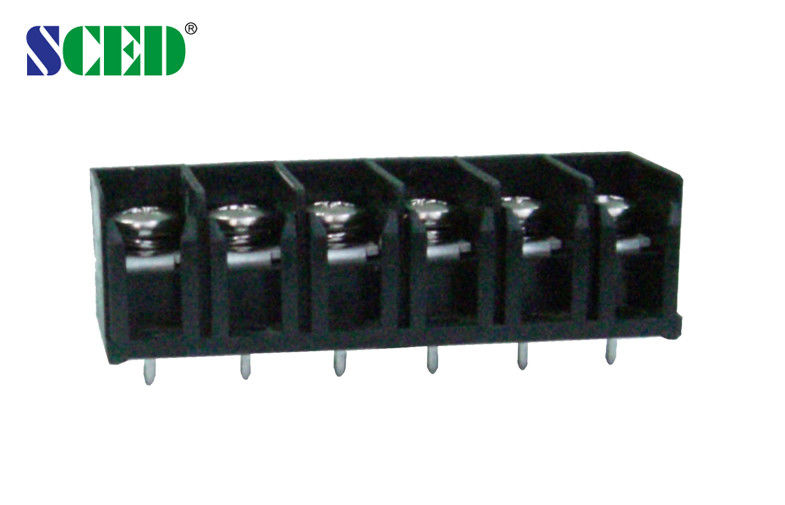

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

    • 10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG
    • 10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG
  • 10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TB1000-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.064-0.128 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Black Pitch: 10mm
    Poles: 2-20 Poles Voltage: 300V
    Current: 15A Screw: M4
    Stripping Length: 9-10mm Insulation Material: PBT
    Rated Surge Voltage: No Abnormal Within 1 Minute Insulation Resistance: Above DC500V, 500MΩ

    10mm Pitch Power Barrier Terminal Block 2-20 Poles 15A Brass 16-24 AWG





    Detailed product Description:



    Pitch 10.00mm, 300V 20A, 2P-20P, Barrier Terminal Blocks, Power Terminal Blocks

    Wire Inlet: ■Right angle wire inlet

    Levels: ■Single Level

    Standard color: Black.

    Other colors can be also available, please refer to below How to Order and select the color you want.



    How to order:

    10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG

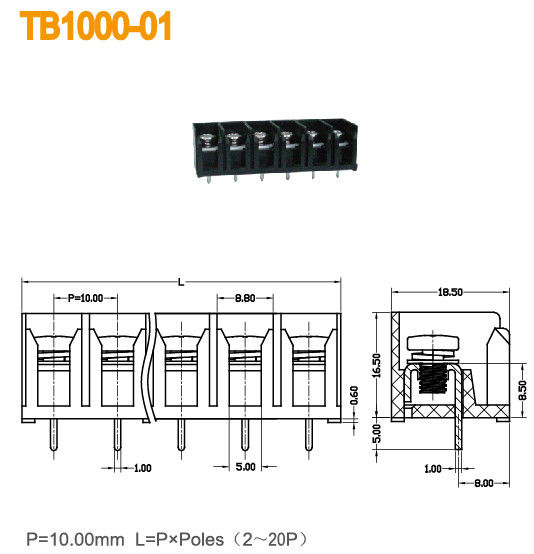

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 15   300 / 10
    Wire Range AWG 16-24   16-24
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 17.5 630 / 17.5 8000 / 17.5
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.8
    Stripping Length mm 9-10
    Screw / Torque / lbf.in M 4 / 10-12



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. More than 1000 models for selection

    10mm Pitch Power Barrier Terminal Block With 2-20 Poles 15A Brass 16-24 AWG
