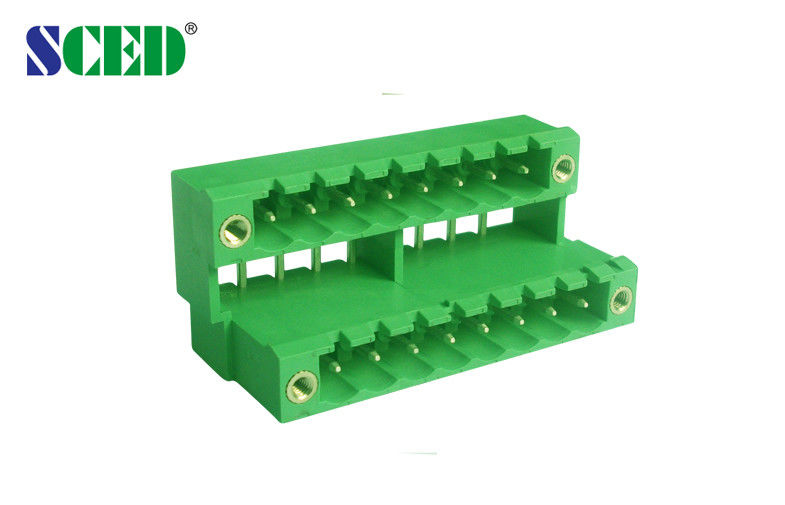

Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

    • Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch
    • Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch
  • Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TP508H-06VF

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.025-0.05 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Rated Surge Voltage: No Abnormal Within 1 Minute Insulation Resistance: Above DC500V, 500MΩ
    Levels: Double Levels Color: Green
    Pitch: 5.08mm Type: Male Parts
    Insulation Material: PA66 Clamp Cage: Brass
    Inflammability Class: UL94-V0 Poles: 2-22 Poles

    Male Sockets Pluggable Terminal Blocks Headers 2*2-2*22 Poles 5.08mm Pitch



    Detailed product Description:



    Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2*2P-22*2P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Levels: □Single Level; ■Double Levels; □Triple Levels



    This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F



    Standard color: Green.

    Other colors can be also available as required, please refer to below How to Order and select the color you want.



    How to order:



    Male Sockets Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm Pitch

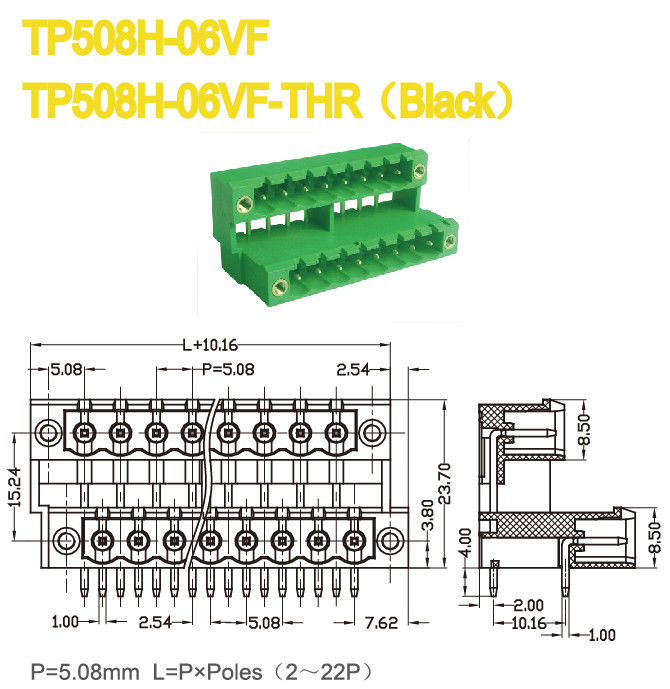

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/18
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
    Rated Surge Voltage KV 4 4 4
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Pin Dimension mm 1.0 x 1.0



    Applications:

    1. PCB, Frequency Converters, Server Site, Switch

    2. Power Supply, Electric Lighting, Industry Control, Automation

    3. Rail Transportation, Communication, Electric Power, Security

    4. Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Flexible to design the exact part per customers’ demand
    2. Quick response
    3. High quality and competitive price
    4. More than 1000 models for selection
