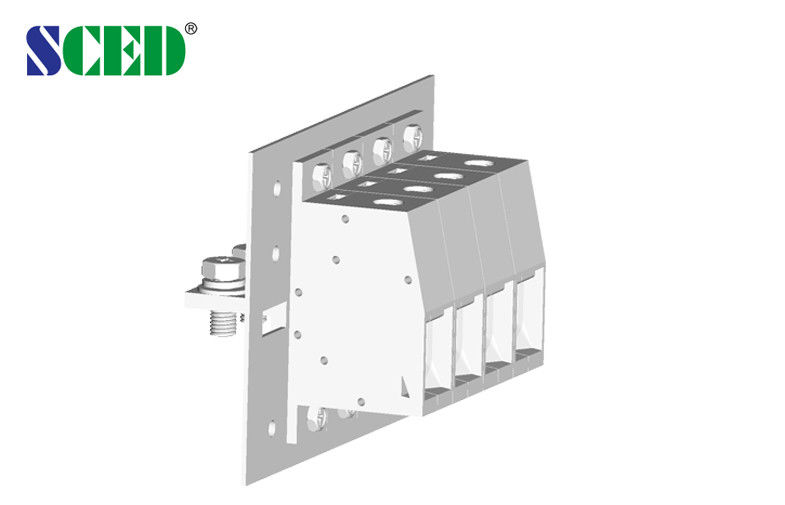

600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting

    • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
    • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
    • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
  • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-150N-03F

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 100K poles each monthly
    Contact Now
    Detailed Product Description
    Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 30.00mm
    Number Of Contacts: 1P-24P Wire Range: 2-300kcmil
    Rated Voltage: 600V Rated Current: 285A
    Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control


    600V 285A Through Panel Terminal Blocks 30.00mm 1-24 Number Of Contact Electric Terminal


    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 285





    Wire Range                               AWG

    2-300kcmil





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    630 / 309

    800 / 309

    1000 / 309

    Rated Surge Voltage                     KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    150

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel / Nickel Plated

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    26

    Screw / Torque                    / lbf.in

    M10 / 50-60




    Competitive Advantage:


    1, Stable good quality   2, Competitive price 3.    Quickly response

    4.    Full range products for selection   5.    Flexible to design the exact part per customers’ demand

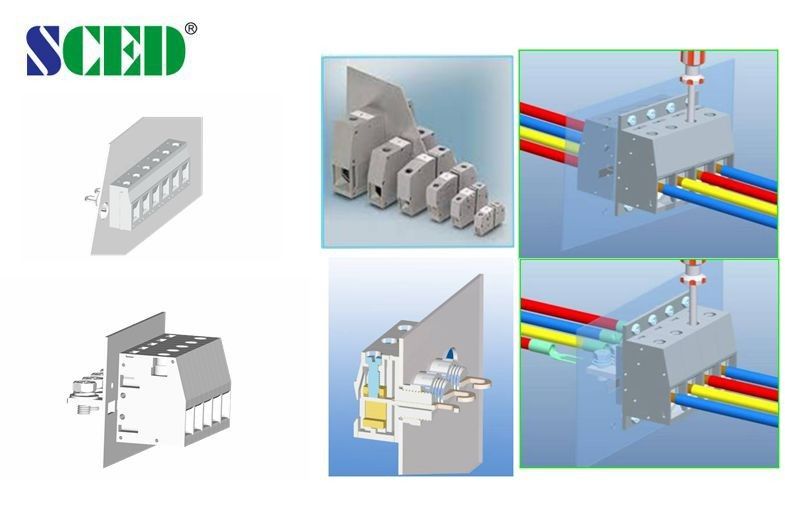

    Drawing Photo



    600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
