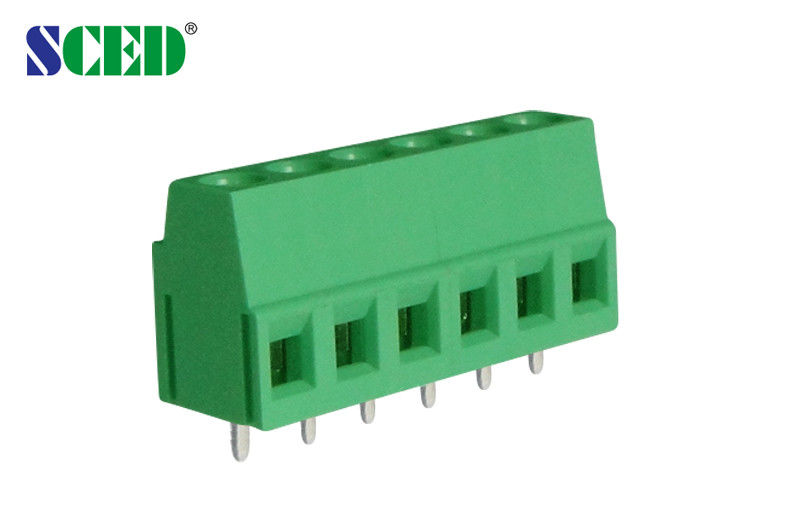

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

    • 5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color
    • 5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color
  • 5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TJ508-14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.042-0.082
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Screw: M3 Pitch: 5.08mm
    Color: Green Current: 10A
    Voltage: 300V Poles: 2-24 Poles
    Clamp Cage: Brass Rated Surge Voltage: No Abnormal Within 1 Minute
    Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ

    Detailed product Description:



    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



    Wire Inlet: ■Right angle wire inlet

    Decks: ■Single Deck

    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M3 / 4.4-5.3


    Applications:



    Normally our products will be used in a lot of fileds and industries, for example:



    Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security,  Frequency Converters and Server Site and so on.



    Competitive Advantage:



    1. OEM an
    2. d ODM service
    3. More than 1000 models for selection
    4. High quality but competitive price
    5. Good after-sales service

    5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color
