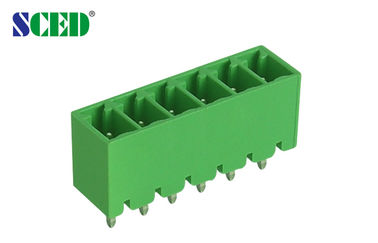

8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

    • 8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
    • 8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
  • 8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TP381H-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.018-0.05 PER Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Poles: 2-22 Poles Type: Male Part
    Pitch: 3.5mm Voltage: 300V
    Current: 8A Insulation Material: PA66
    Terminal: Brass Plating: Tin Plated
    Rated Surge Voltage: 2.5KV PCB Hole Diameter: 1-2mm

    8A Pluggable Terminal Block Male Part Pitch 3.5mm 300V UL94-V0 Class





    Detailed product Description:



    Header, Male Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23



    Wire Inlet: □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

    Levels: ■Single Level; □Double Levels; □Triple Levels



    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class

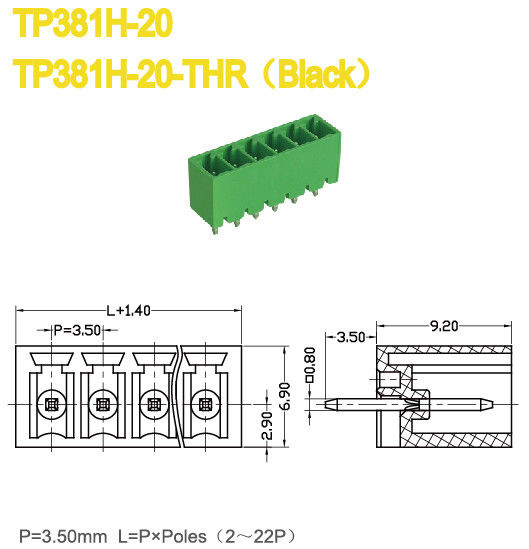

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 8
    Wire Range AWG
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.2
    PinDimension mm 0.8 x 0.8



    Applications:

    Our products can be used in lots of fields and industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment and Military and so on.





    Competitive Advantage:

    1. More than 10 years of experience in desinging and manufacturing
    2. OEM and ODM service
    3. High quality and competitive price
    4. More than 1000 models for selection

    8A Terminal Block Plug Male Parts Pitch 3.5mm 300V UL94-V0 Class
