Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

    • Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
    • Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
  • Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TP508P-76

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.06-0.12 PER Pole
    Packaging Details: Standard export packing carton, or according to customers demand.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Pitch: 7.62mm
    Type: Plug In Current: 8A
    Voltage: 300V Poles: 2-24 Poles
    Insulation Material: PA66 Screw: M2
    Torque: 2-2.2 Lbf.in Clamp Cage: Brass

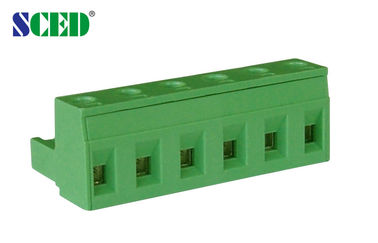

    Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm



    Detailed product Description:



    Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V



    Levels: ■Single Level



    Standard color: Green.



    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

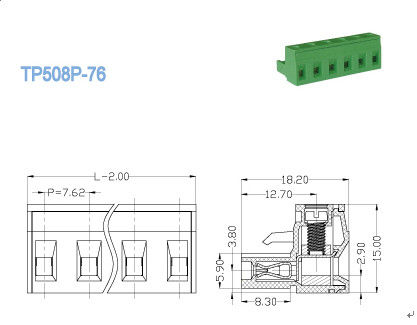

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 18   300 / 18
    Wire Range AWG 12-30   12-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. High quality
    2. Reasonable price
    3. Full range products for selection
    4. Flexible to design the exact part per customers’ demand

    Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
