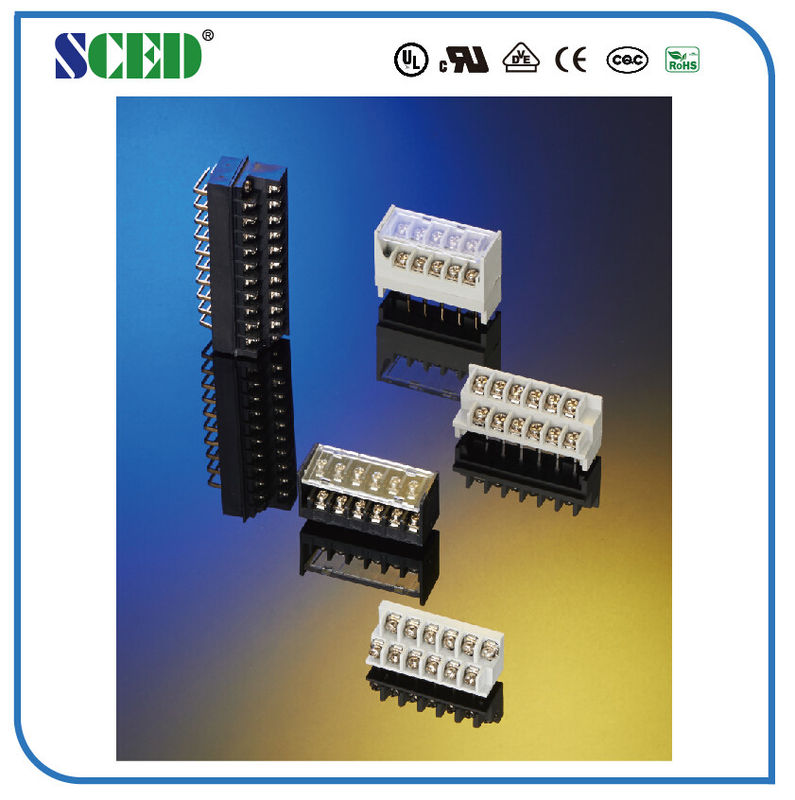

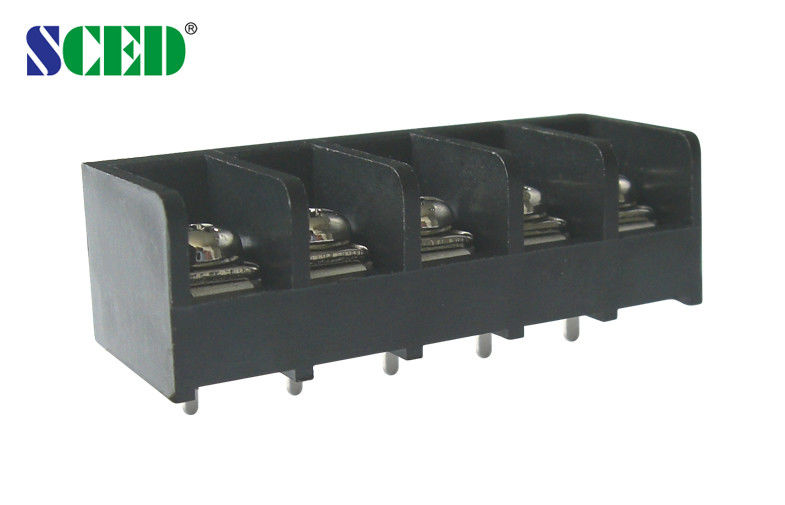

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector

    • 9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
    • 9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
  • 9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB952-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 9.525mm Color: Black
    Rated Current: 20A Rated Voltage: 300V
    Poles: 2-24 P Material: PBT

    9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector


    Parameter



    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 20   300 / 10
    Wire Range AWG 12-22   12-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ2.1
    Stripping Length mm 8-9
    Screw / Torque / lbf.in M 3.5 / 7-10



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Competitive Advantage:


    Stable good quality

    Competitive price

    Quickly response

    Full range products for selection

    Flexible to design the exact part per customers’ demand



    Drawing Photo

     9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
