2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical

2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical

    • 2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical
    • 2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical
  • 2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381H-07V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 3.81mm Color: Green
    Rated Voltage: 300V Rated Currennt: 8A
    Available Poles: 2-24P Insulation Material: PA66

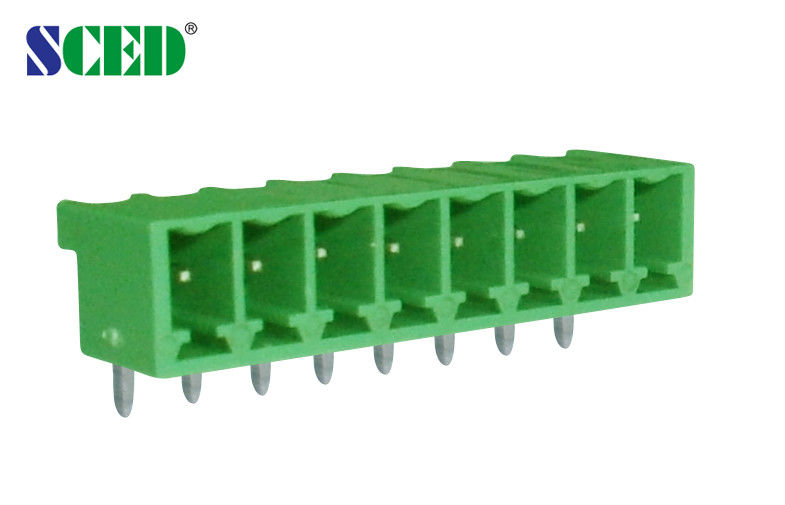

    2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A Male Female Connector





    ■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■ Single Deck; □Double decks; □Triple decks



    Parameter



    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.2
    Pin Dimension mm 0.8 x 0.8





    2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    2P - 24P Plug In Female Terminal Block 3.81mm 300V 8A For Male Female Connectors Electrical
