600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block

China 600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block supplier
600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block supplier 600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block supplier

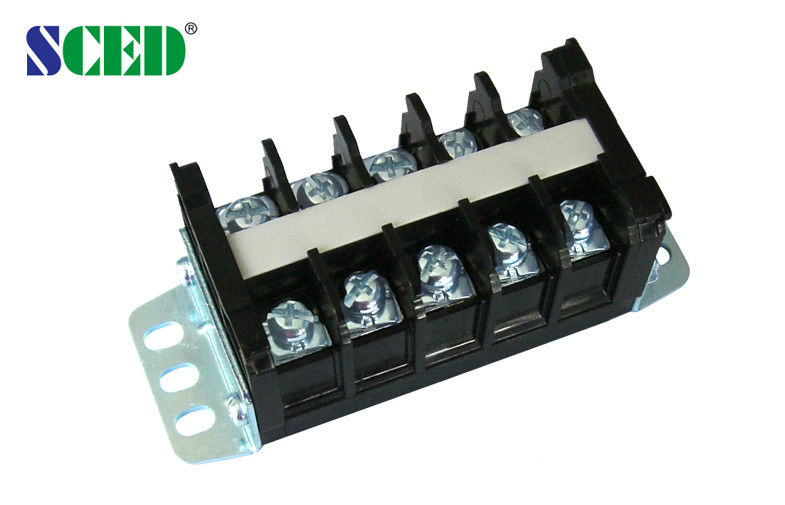

Large Image :  600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR40-01-BM0

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Number Of Contacts: 2P-28P Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Pitch: 14.00mm Rated Current: 40A
Color: Black Rated Voltage: 600V
Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 8-22

600V High Current Terminal Block 14.00mm 40A Brass Screw Clamp Terminal Connector





Applications:



PCB, Frequency Converters,

Server Site, Switch,

Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication,

Security, Medicine Equipment, Military, Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40



Wire Range                               AWG

8-22

8-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage                    KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

10-12

Screw / Torque                    / lbf.in

M5 / 14-18



Drawing Photo:



600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block
