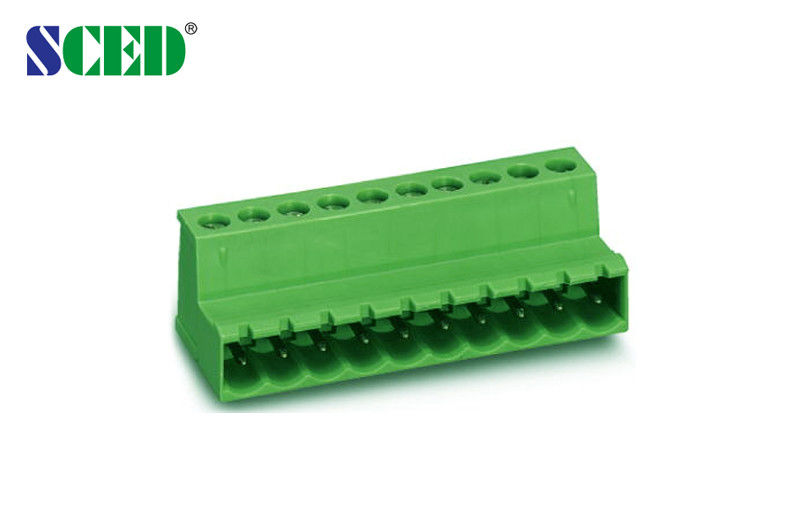

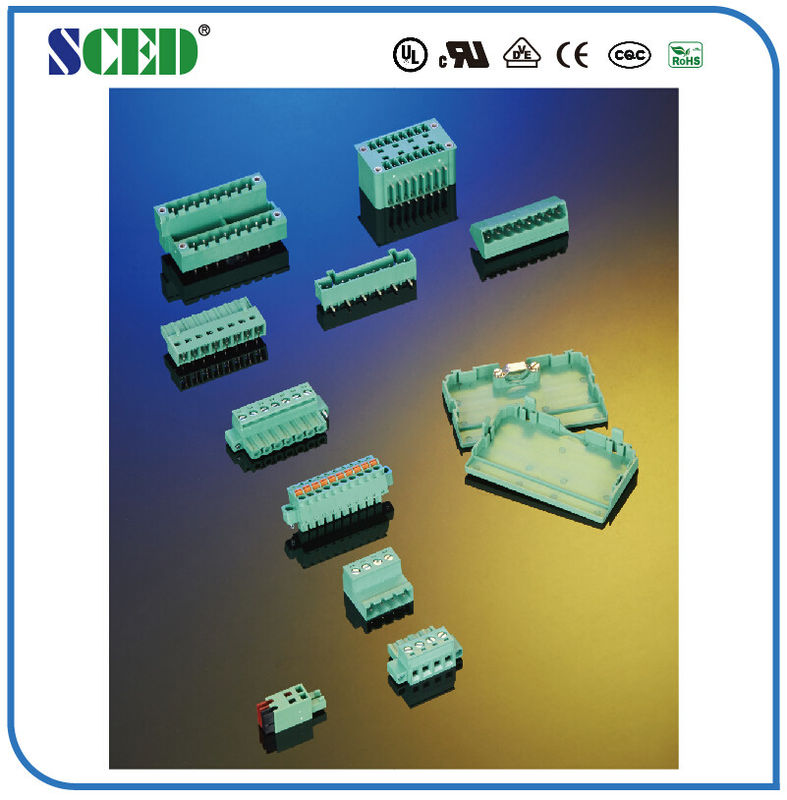

PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A

PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A

    • PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A
    • PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A
  • PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL, CUL,CQC and VDE etc.
    Model Number: TP508P-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.012-0.1 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Type: Female Part Color: Green
    Pitch: 5.08mm Insulation Resistance: Above DC500V, 500MΩ
    Inflammability Class: UL94, V-0 Rated Surge Voltage: No Abnormal Within 1 Minute
    Contact Resistance: Less Than 8mΩ Current: 18A
    Poles: 2-22 Poles Voltage: 300V

    2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Part 300V 18A



    Detailed product Description:



    Plug, Male, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

    Levels: ■Single Level; □Double Levels; □Triple Levels

    This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A



    Applications:



    Medical Equipments, Communication, Power Supply, Automation, Security, Industrial Control, PCB etc..



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/18
    Wire Range AWG 12-30   12-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Contactor / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. Quickly response
    2. Full range products for selection
    3. Flexible to design the exact part per customers’ demand
    4. High quality
    5. Competitive price

    PCB 2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Parts 300V 18A
