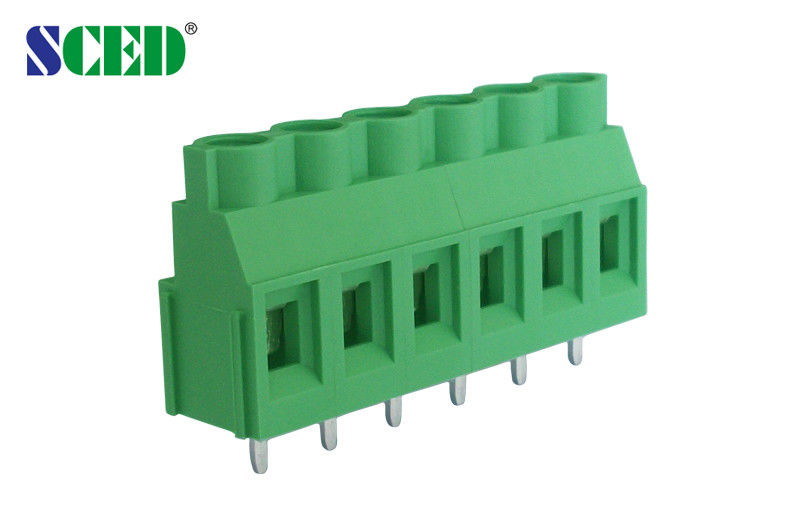

Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class

Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class

    • Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class
    • Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class
  • Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE etc.
    Model Number: TJ952-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.5-0.12 Per Pole
    Packaging Details: Standard export packing carton, or according to customers demand.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Screw: M3 Insulation Resistance: Above DC500V, 500MΩ
    Rated Surge Voltage: No Abnormal Within 1 Minute Color: Green
    Pitch: 7.62mm Torque: 10.6-13 Lbf.in
    Current: 30A Voltage: 300V
    Plastic: PA66 Terminal: Brass

    Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class



    Detailed product Description:



    Pitch 7.62mm, 300V 30A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■ Right angle wire inlet

    ■ Single Deck

    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

    Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class

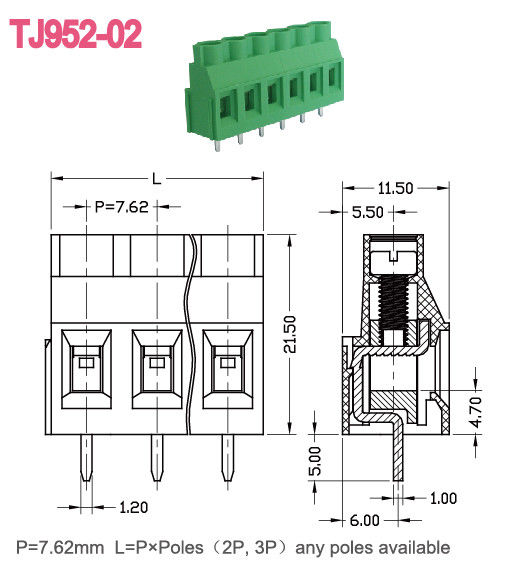

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 30 300 / 30
    Wire Range AWG 10-30 10-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 630 / 32 1000 / 32 1000 / 32
    Rated Surge Voltage KV 6 8 6
    Rated Connecting Capacity mm2 4.0
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.9
    Stripping Length mm 7-8
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. Flexible to design the exact part per customers’ demand
    2. High quality and competitive price
    3. Good after-sales service

    Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class
