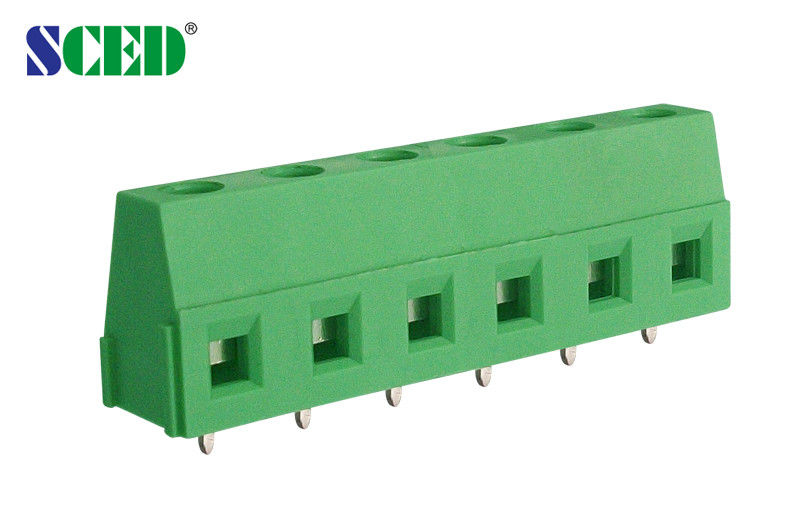

5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series

5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series

    • 5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series
    • 5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series
  • 5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL
    Model Number: TJ508-17

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.05-0.12 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Pitch: 5.08mm
    Current: 10A Voltage: 300V
    Poles: Any Poles Available Screw: M3
    Torque: 4.4-5.4 Lbf.in Insulation Material: PA66
    Inflammability Class: UL94-V0 Stripping Length: 6-7mm

    5.08mm PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series





    Detailed product Description:



    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Levels:■Single Deck; □Double decks; □Triple decks

    Standard color: Green.

    Other colors are also available, please refer to below How to Order and select the color you want.



    How to order:

    5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series



    Competitive Advantage:



    1. More than 1000 models for selection
    2. Good stable quality
    3. CE,UL,CUL,CQC,VDE etc.safety certifications
    4. more than 13 years of experience in designing, manufacturing and marketing

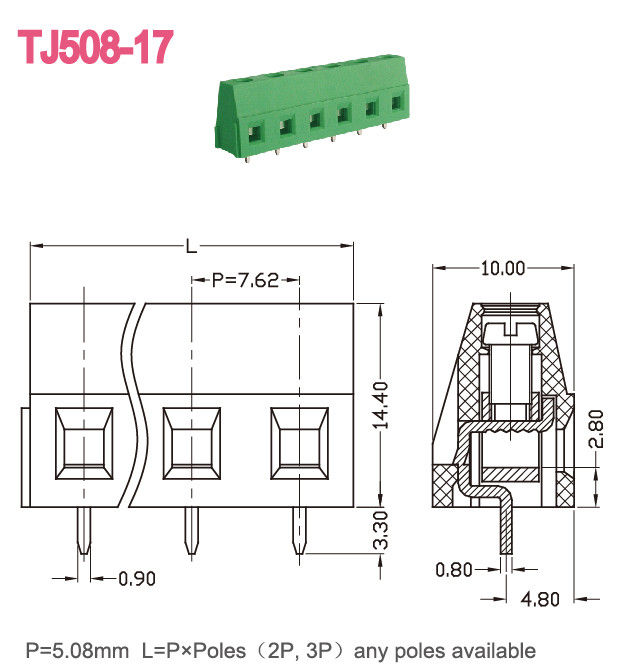

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.5
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Applications:



    Our terminal blocks can be used in a lot of fields and industries. Such as:



    1. Communication, Electrical equipments, Electric Lighting, Security

    2. Power Supply, PCB, Rail Transportation, Medical Equipment

    3. Military, Automation, Industrial Control, Frequency Converters, Server Site etc.



    5.08mm Screw PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series
