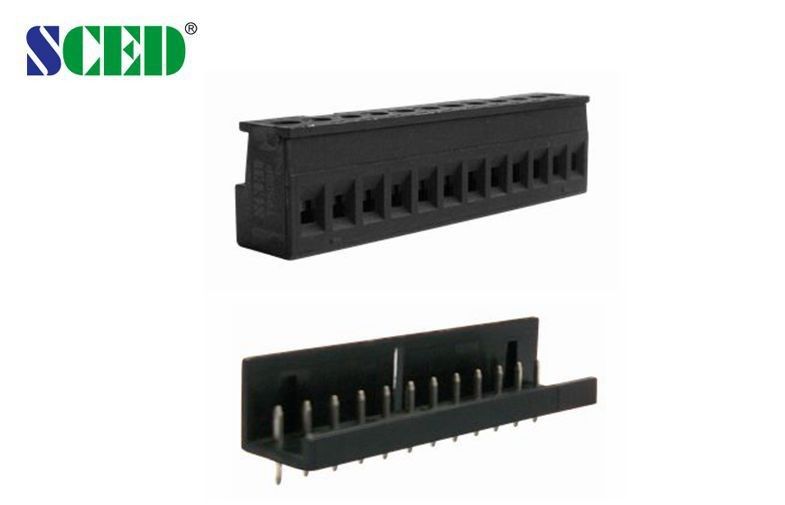

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

    • 5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
    • 5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
  • 5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP508P-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 5.08mm Material: PA66
    Color: Black Poles: 2-24 Poles
    Rated Voltage: 300V Rated Current: 18A

    5.08mm Male Female Plug In Terminal Block 300V 18A 2P - 24P For Servo Drive



    Single Level; □Double Levels; □Triple Levels



    This female plug match with male sockets’ series: TP508H-08



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/18   300/18
    Wire Range AWG 12-30   12-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Contactor / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M3 / 4.4-5.3





    5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    Stable good quality

    Competitive price

    Quickly response

    Full range products for selection

    Flexible to design the exact part per customers’ demand





    Applications:



    servo drive, security communication, energy conservation, etc.



    Tag:



    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





    Drawing Photo:



    5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive



    5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
