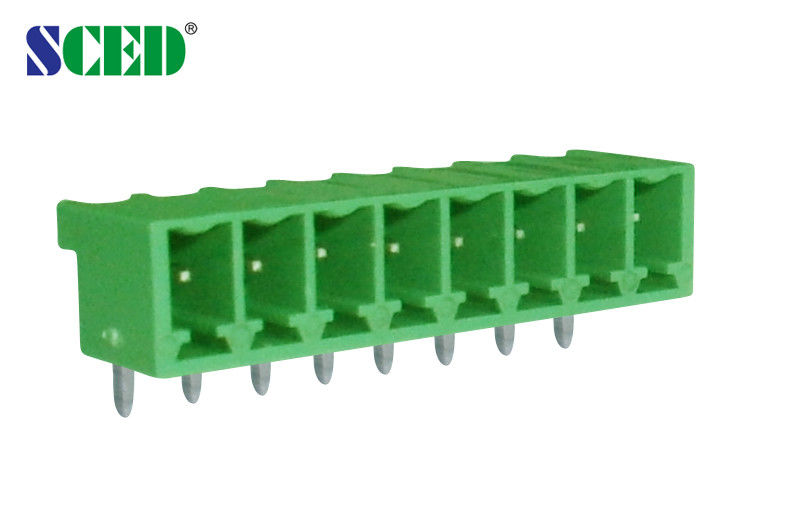

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P

    • Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
    • Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
  • Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE
    Model Number: TP381H-07V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.015-0.032 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 3.81mm Voltage: 300V
    Current: 8A Poles: 2-24 Poles
    Pin Dimensions: 0.8*0.8mm PCB Hole Diameter: 1.2mm
    Terminal: Brass Insulation Material: PA66
    Inflammability Class: UL94-V0 Type: Male Part

    Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P Brass





    Detailed product Description:



    Pitch: 3.81mm, 300V 8A, 2P-24P, Socket, Pluggable Terminal blocks, Plug-in terminal block



    Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    Levels: ■Single Deck; □Double decks; □Triple decks



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P



    Applications:



    Our terminal blocks can be used in the following fields and industries:



    1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

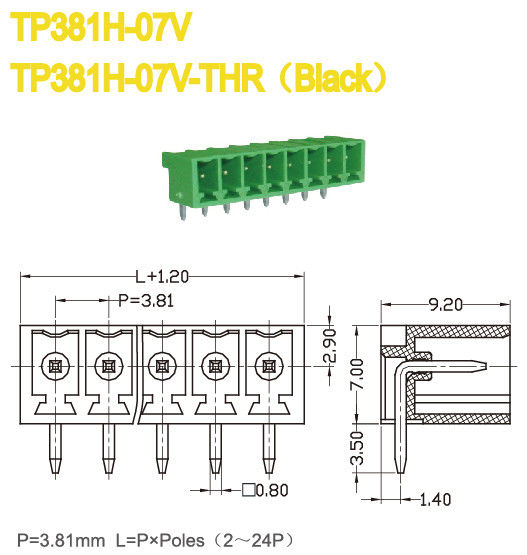

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.2
    Pin Dimension mm 0.8 x 0.8



    Competitive Advantage:



    1. Flexible to design the exact part per customers’ demand

    2. Stable good quality and competitive price

    3. More than 1000 models for selection

    4. Quick response and good after-sales service.



    Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
