High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

    • High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
    • High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
  • High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

    Product Details:

    Place of Origin: Guangdong,CN
    Brand Name: SCED
    Certification: UL
    Model Number: TB1300-00-D3-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.08-0.165 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Poles: 2-12 Poles Pitch: 13mm
    Insulation Material: PBT Color: Black
    Screw: M4 Torque: 10.6-13 Lbf.in
    PCB Hole Dia.: 1.4*5.4mm Inflammability Class: UL94-V0
    Voltage: 600V Current: 40A

    High Voltage Barrier Terminal Block Plastic Cover 40A Brass 2-12 Poles 20-8 AWG





    Detailed product Description:



    Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet

    ■Single Level

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG

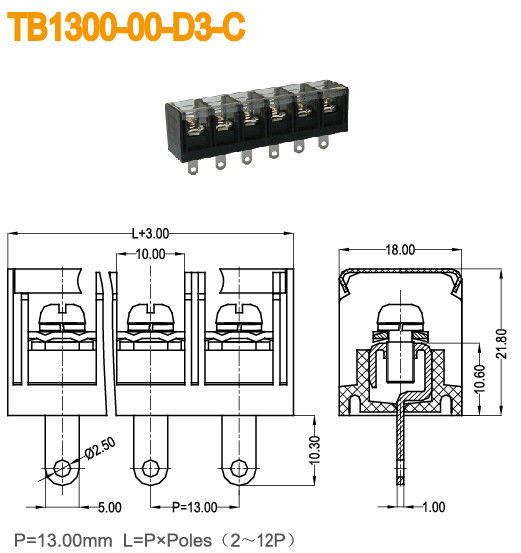

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
    Wire Range AWG 20-8 20-8 20-8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm 1.4x5.4
    Stripping Length mm 10-11
    Screw / Torque / lbf.in M 4 / 10.6-13





    Applications:



    PCB, Power Supply, Electrical Equipments, Medical Equipments, Automation, Security, Industrial Control, Server Site, Communication etc.





    Competitive Advantage:



    1. More than 1000 models for selection
    2. OEM and ODM service
    3. High quality and competitive price
    4. Quick response

    High Voltage Barrier Terminal Block With Plastic Cover 40A Brass 2-12 Poles 20-8 AWG
