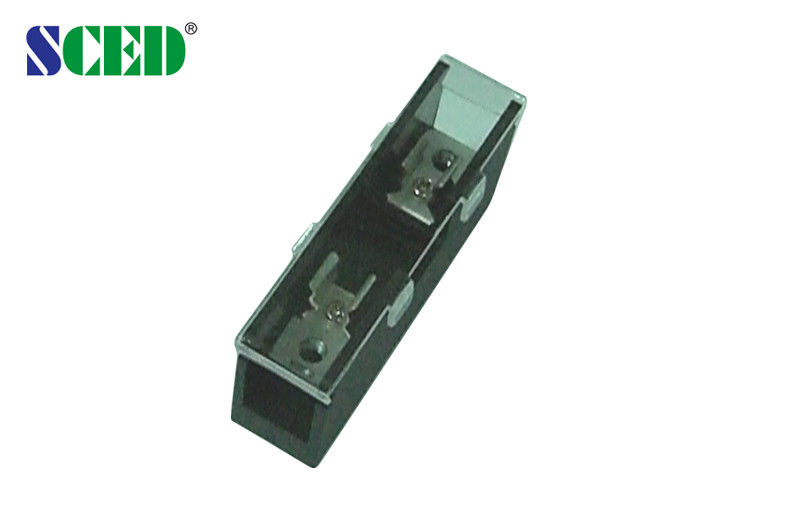

690V 5A Din Rail Mounting Accessories PBT M4 Screw With Cover For Power

690V 5A Din Rail Mounting Accessories PBT M4 Screw With Cover For Power

    • 690V 5A  Din Rail Mounting Accessories PBT M4 Screw With Cover For Power
    • 690V 5A  Din Rail Mounting Accessories PBT M4 Screw With Cover For Power
  • 690V 5A  Din Rail Mounting Accessories PBT M4 Screw With Cover For Power

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: AO-60/30-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Material: PBT Insulation Body: PBT, UL94, V-O
    Screw: M4 Voltage: 690V
    Current: 5A Screw Torque: 13 Ibf·in
    Applicable Fuse: φ6.35*31.8 Item: Terminal Accessory

    690V 5A Terminal Block Accessories PBT M4 Screw With Cover For Power



    Details



    1. Terminal Accessories, 2. PCB terminal, 3. Electrical components



    1. Metal terminal connect accessories can be worked as a terminal block after mount on PCB,



    2. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.





    Applications:



    1. PCB,

    2. Frequency Converters,

    3. Server Site,

    4. Switch, Power Supply, etc..



    Data:

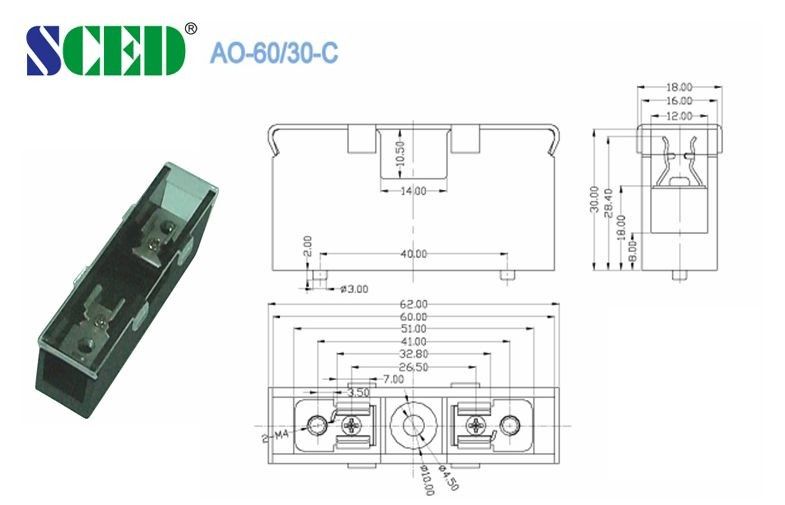

    Model AO-60/30-C
    Technical Data
    Rated Parameters 690V,5A
    Insulation Body PBT, UL94, V-O
    Screw M4, Steel, Nickel Plated
    Screw Torque 13 Ibf·in
    Applicable Fuse φ6.35*31.8







    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    690V 5A  Din Rail Mounting Accessories PBT M4 Screw With Cover For Power
