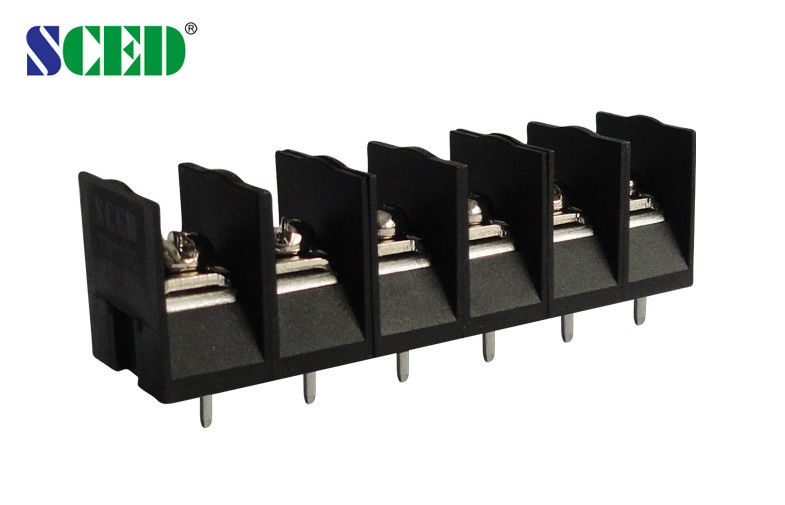

Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5

Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5

    • Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5
    • Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5
  • Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE
    Model Number: TB1100-18

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.076-0.152 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: Working Days: 5-20
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Black Plastic: PBT
    Voltage: 600V Current: 30A
    Pitch: 10mm Poles: Any Poles Available
    Terminal: Brass Screw: M3.5
    Stripping Length: 10-11mm Wire Range: 10-22 AWG

    Plastic PBT Barrier Terminal Blocks Brass 10mm Pitch 600V 30A Screw M3.5



    Detailed product Description:



    Pitch 10.00mm, 600V 30A, 9-2P or 3P, Barrier Terminal blocks, power terminal blocks

    ■Right angle wire inlet

    ■Single Level

    Standard color: Black and other colors also can be available.



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 30 600 / 30 600 / 5
    Wire Range AWG 10-22 10 / 22 10-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 30 800 / 30 1000 / 30
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.6
    Stripping Length mm 10-11
    Screw / Torque / lbf.in M 3.5 / 8-10



    Competitive Advantage:



    1. OEM and ODM service
    2. Good price
    3. Quickly response and good after-sales service
    4. More than 1000 models for selection
    5. Safety certifications
    6. R&D abilities

    Applications:



    Normally our products will be used in below industries:

    1.Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military

    2.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting and so on.

    Plastic PBT Electrical Terminal Block Brass 10mm Pitch 600V 30A Screw M3.5
