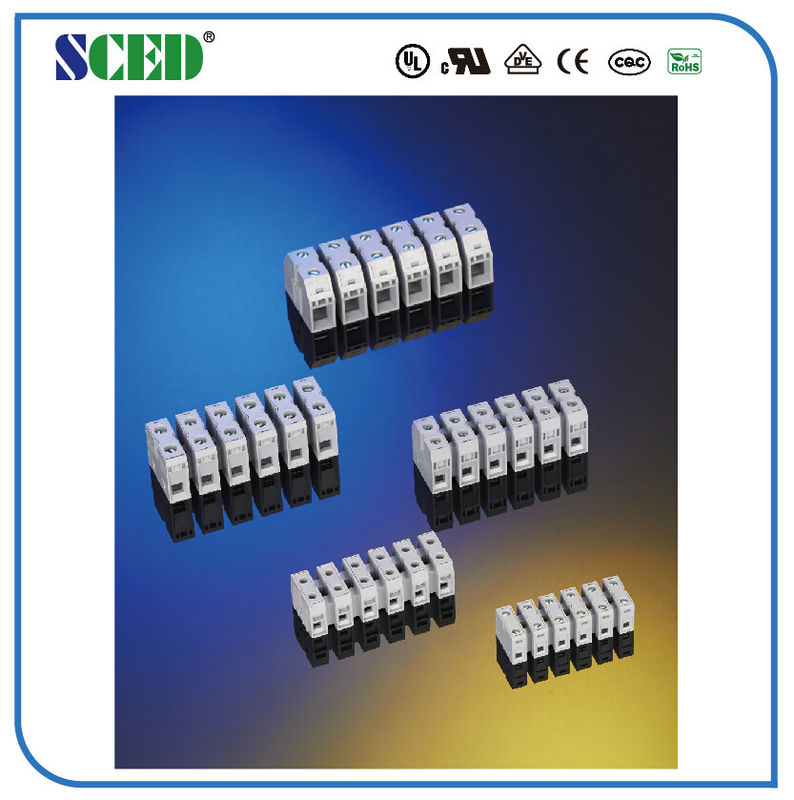

Pitch 14.5mm Terminal Connector Block 2-16 Poles 600V 65A PA66

Pitch 14.5mm Terminal Connector Block 2-16 Poles 600V 65A PA66

  • Pitch 14.5mm Terminal Connector Block 2-16 Poles 600V 65A PA66
  • Pitch 14.5mm Terminal Connector Block 2-16 Poles 600V 65A PA66
Pitch 14.5mm Terminal Connector Block 2-16 Poles 600V 65A PA66
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: UL,CE
Model Number: TR-10N-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.215 -0.432 Per Pole
Packaging Details: Normally Our Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 14.5mm Poles: 2-16 Poles
Voltage: 600V Current: 65A
Wire Range: 6-24 AWG Material: PA66
Inflammability Class: UL94-V0 Stripping Length: 9-10mm
Screw: M5 Clamp Cage: Brass
High Light:

pcb terminal block connectors

,

pcb mount terminal block

Pitch 14.5mm Feed Through Terminal Block 2-16 Poles 600V 65A



Detailed product Description:



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 65 600 / 65 600 / 5
Wire Range AWG 6-24 6-24 6-24
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 65 1000 / 65 1000 / 65
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board / Plating Copper / Nickel Plated
Clamp Cage / Plating Brass / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 9-10
Screw / Torque / lbf.in M5 / 10.6-13



Pitch 14.50mm, 600V 65A, 2-16P, Feed Through Terminal Blocks

■Wire Inlet:right angle

■Single Level

Standard color: Grey and other colors are available as well.



Applications:

Our products are often used in power supply, industril control, security, medical equipment, communication and automation and so on.



Competitive Advantage:



  1. Stable good quality
  2. 1000 models for selection
  3. Competitive price
  4. OEM and ODM service
