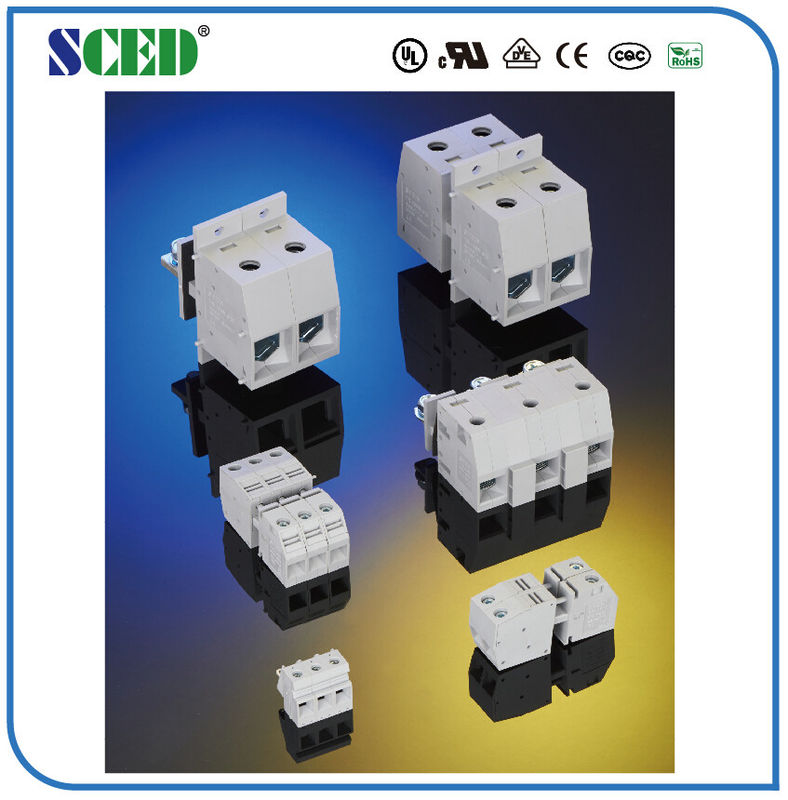

UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width

UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width

    • UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width
    • UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width
    • UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width
  • UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-95N-02F

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 Piece/Pieces
    Price: USD 2.03-4.06 per Pole
    Packaging Details: Our Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Voltage: 600V Current: 230A
    Terminal Width: 25mm Insulation Material: PA66
    Inflammability Class: UL94-V0 Conduction Board: Copper
    Stripping Length: 27mm Screw: M8
    Plating: Tin Plated Wire Range: 4-4/0 AWG

    PA66 Through Panel Terminal Blocks 600V/230A 25mm Terminal Width



    Detailed product Description:



    Pitch 25.0mm, 600V 230A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    Standard color: Grey and other colors also can be available.

    ■Wire Inlet:right angle

    ■Single Deck



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 230   600 / 5
    Wire Range AWG 4-4/0   4-4/0
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 830 / 232 1000 / 232 1000 / 232
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 95
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Steel / Nickel Plated
    Conduction Board / Plating Copper / Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 27
    Screw / Torque / lbf.in M8 / 132-177



    Competitive Advantage:



    1. Stable high quality
    2. OEM and ODM service
    3. Quick response and good after-sales service

    Applications:



    Normally our products can be used in a lot of fields and industries, such as medical equipment, automation, industrial control, power supply, communication, electric lighting, security, invertors and converters and so on.



    UL CE PA66 Wiring Terminal Block 600V/230A 25mm Terminal Width
