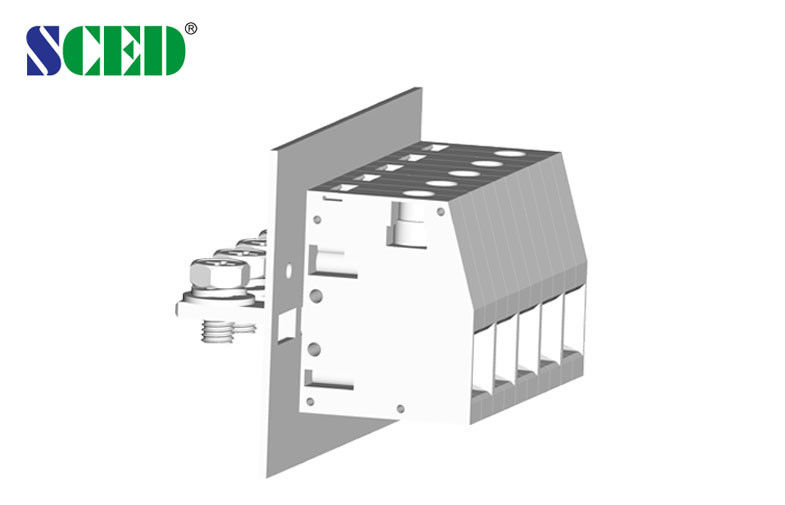

150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width

150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width

    • 150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width
    • 150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width
    • 150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width
  • 150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-50N-03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.96- 1.91 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 18.8mm Current: 150A
    Voltage: 600V Wire Range: 6-1/0 AWG
    Plastic: PA66 Inflammability Class: UL94-V0
    Clamp Cage: Steel Strippng Length: 24mm
    Screw: M6 Torque: 38-40 Lbf.in

    150A Through Panel Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width



    Detailed product Description:

    .

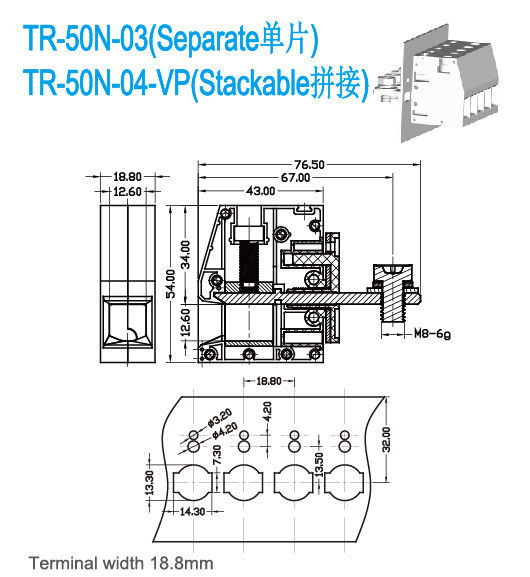

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 150   600 / 5
    Wire Range AWG 6-1/0   6-1/0
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 830 / 150 1000 / 150 1000 / 150
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 50
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Steel / Nickel Plated
    Conduction Board / Plating Copper / Nickel Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 24
    Screw / Torque / lbf.in M6 / 38-40



    Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet

    ■Single Deck;

    Standard color: Grey. Other colors are available, as well.



    Applications:

    1. They can be used in Communication, Medical Equipment, Frequency Converters, Power Supply

    2. Besides, they can be also used in PCB, Server Site, Indutrial Control and Automation etc.



    Competitive Advantage:



    1. OEM and ODM service
    2. High quality and reasonable price
    3. Good after-sales service
    4. 10 main series and more than 10000 models150A Feed Through Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width
