Place of Origin: | China,Guangdong |
Brand Name: | SCED |
Certification: | UL,CE |
Model Number: | TB1100-01F |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.045-0.089 |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
Delivery Time: | 5-20 Working Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000000 Pole/Poles per Month |
Pitch: | 11mm | Color: | Black |
---|---|---|---|
Pole: | 2-20 Poles | Voltage: | 300V |
Current: | 25A | Wire Inlet: | Right Angle |
Rated Surge Voltage: | No Abnormal Within 1 Minute | Inflammability Class: | UL94, V-0 |
Insulation Resistance: | Above DC500V, 500MΩ | ||
High Light: | barrier type terminal block,pcb terminal blocks |

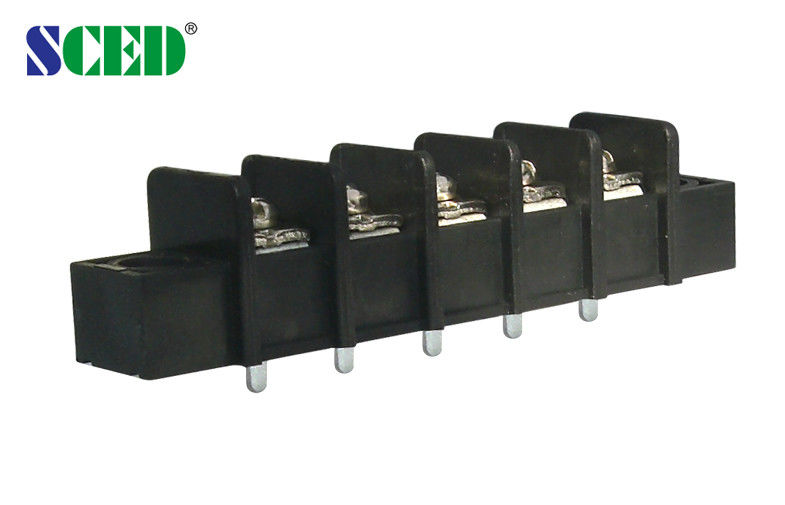

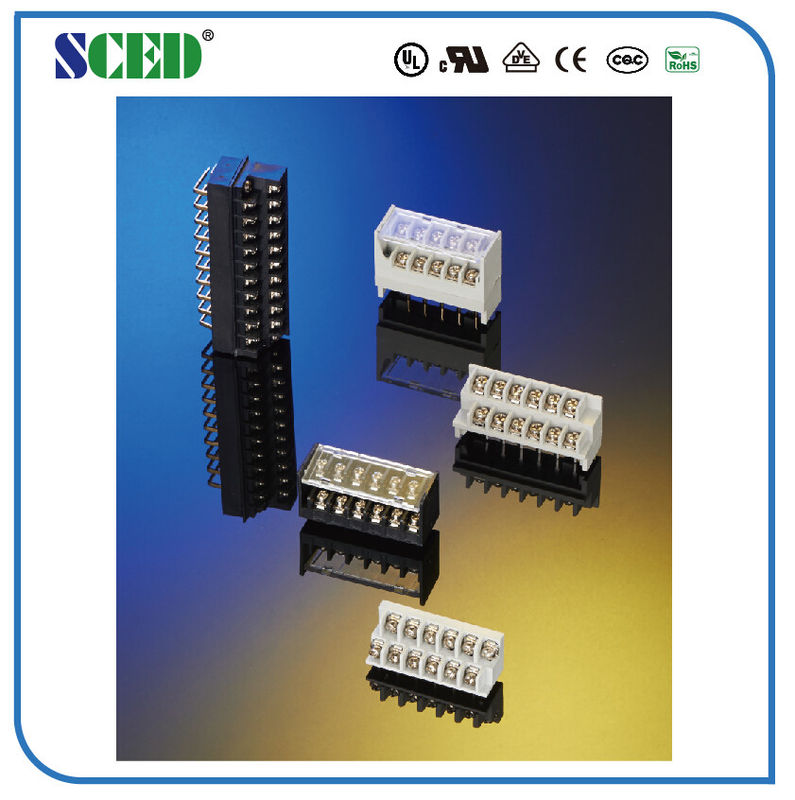

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
Detailed product Description:
Pitch 11.00mm, 300V 30A, 2P-20P, Barrier Terminal blocks, power terminal blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

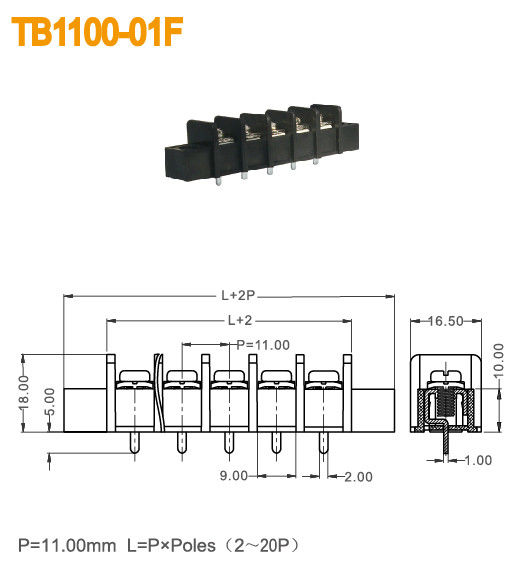

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 30 | 300 / 10 | |
Wire Range AWG | 10-18 | 10-18 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 41 | 800 / 41 | 1000 / 41 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 6 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ2.6 | ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in | M 4 / 10-13 |
