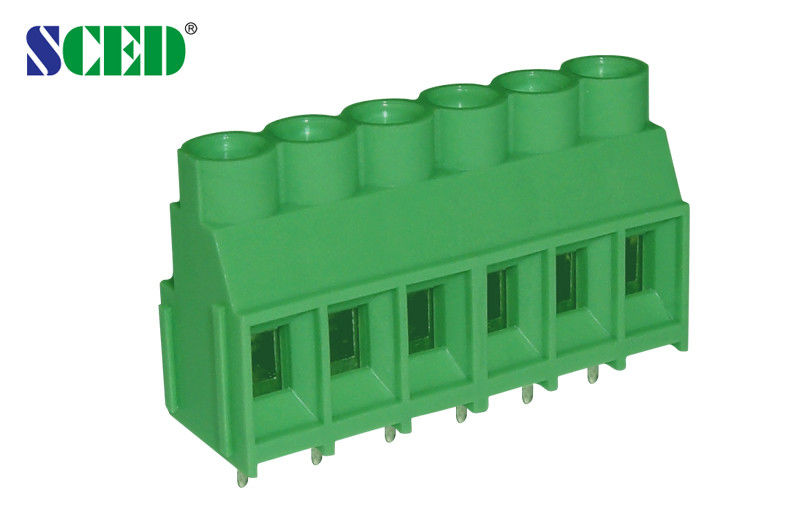

Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series

Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series

    • Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
    • Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
    • Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
  • Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC and VDE etc.
    Model Number: TJ508-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.04-0.09 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 6.35mm Inflammability Class: UL94-V0
    Insulation Material: PA66 Metal Part: Brass
    Voltage: 300V Current: 30A
    Color: Green Poles: 2-24 Poles
    Wire Inlet: Right Angle Rated Surge Voltage: No Abnormal Within 1 Minute

    Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series



    Detailed product Description:



    Pitch 6.35mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Green. Other colors also available.



    Applications:



    They can be used in a lot of industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

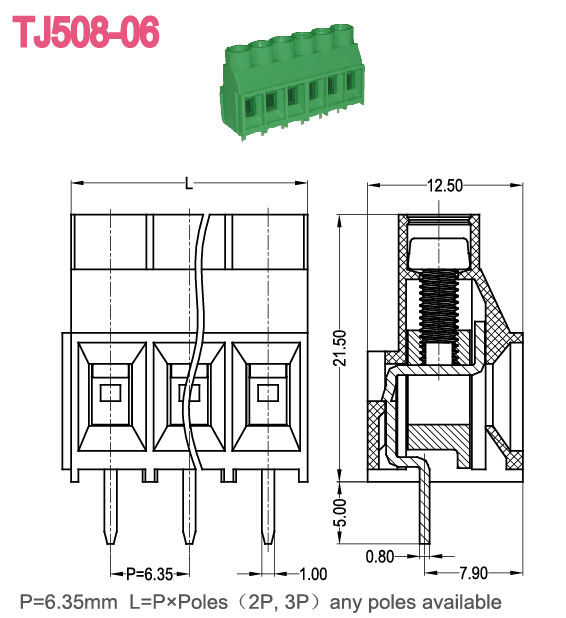

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 10   300 / 10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 320 / 32 320 / 32 630 / 32
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 4.0
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.5
    Stripping Length mm 7-8
    Screw / Torque / lbf.in M3 / 4.4-5.3



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. OEM and OMD servicePluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
