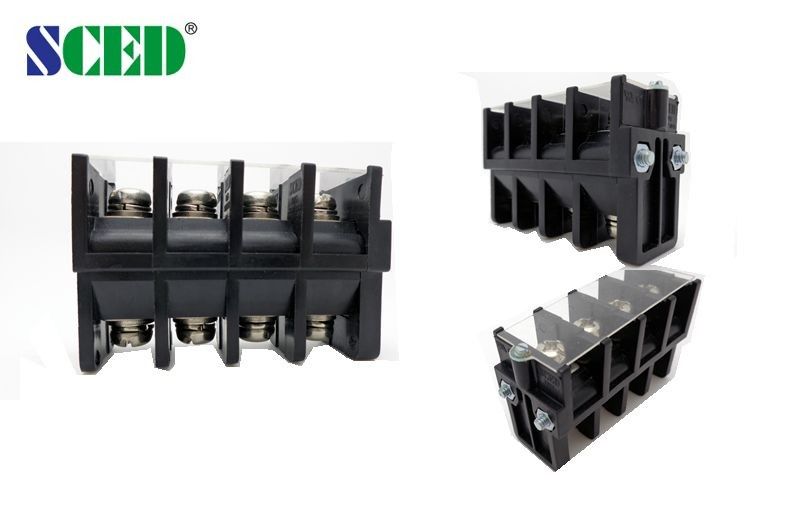

Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm

Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm

    • Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm
    • Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm
  • Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm

    Product Details:

    Place of Origin: SHENZHEN CHINA
    Brand Name: SCED
    Certification: CE ROHS

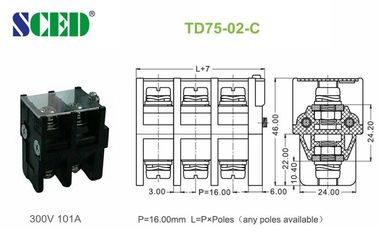

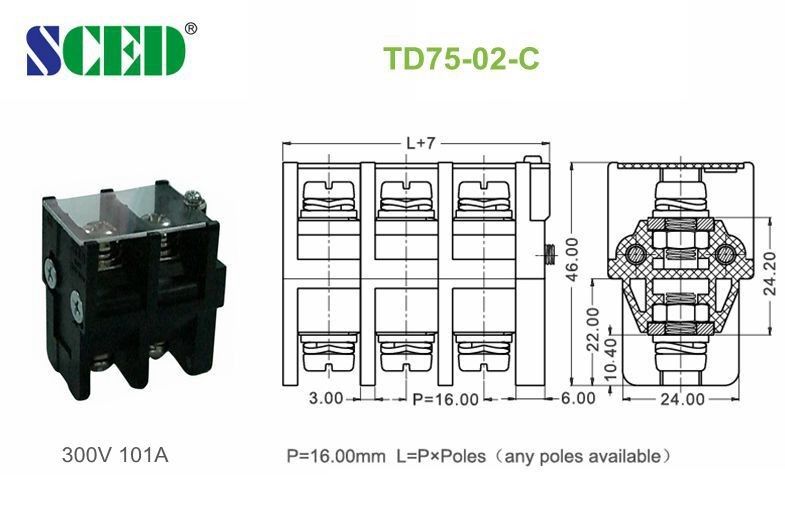

    Model Number: TD75-02-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: USD 0.89-1.27/ Pole
    Packaging Details: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 7-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Panel Mount Pitch: 16.00mm
    Screw: Steel M6 Torque: 20-22 Ibf.in
    Conduction Board: Brass Insulation Material: PBT
    Wire Range: 2-10 AWG Rated Connecting Capacity: 25 Mm2
    Voltage: 300V Current: 101A

    300V 101A Panel Mount Terminal Block 16.00mm Copper Conduction Board Screw Terminal



    1. Quick Detail:



    The current : 101A  Voltage: 300V

    Insulation Material: PBT    Inflammability Classl: UL94, V-0  The weight: 3 poles(117g)



    2. Description:


    1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
    the line before and after, a into a,



    2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.



    3. The Current:101A.



    3. Applications:



    1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



    2. Industry Control, Automation,



    3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



    Elevator, etc..



    4. Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 101



    300 / 10

    Wire Range                              AWG

    2-10



    2-10

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    320 / 101

    400 / 101

    630 / 101

    Rated Surge Voltage                      KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    25

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    Stripping Length                    mm

    12-13

    Screw / Torque                    / lbf.in

    M6 / 20-22


    5. Feature Advantage:



    1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


    2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


    3. It has very good mechanical properties and electrical properties,





    6. Competitive Advantage:



    1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



    2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



    3. Discount offered is based on qty.



    Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm



    Copper Conduction Board Screw Terminal Block 300V 101A 16.00mm



    Tag: Screw Terminal Block, Power Terminal Block, Panel Mount Terminal Block



    If you need this product, please tell us how many poles and quantity do you want? Welcome your inquiry!
