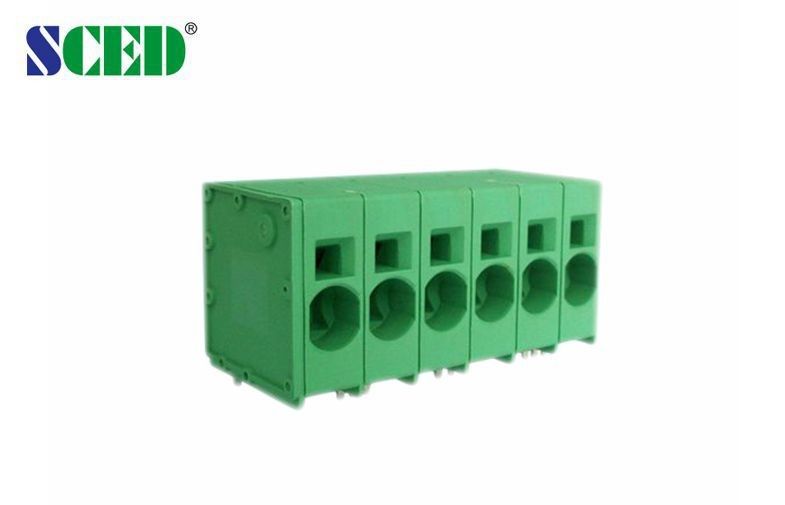

10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG

10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG

    • 10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG
    • 10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG
  • 10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ1000-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500-1000
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1.2KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number Of Contacts: Any Poles Pitch: 10.00mm
    Rated Current: 66A Rated Voltage: 600V
    Wire Range: 4-20 AWG Material Housing: PA66

    Screless Terminal Block 10.00mm Any Poles 600V 66A Copper Terminal Connector

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Deck;  □Double decks;  □Triple decks
    Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

     want.

    Tag:
    PCB terminal blocks, PCB screwless terminal blocks, Electrical terminal Blocks, Euro raising terminal
    blocks, terminal block manufacturer


    How to order:
    10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG


    Applications:

    PCB, Frequency Converters, Server Site, Switch,
    Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication,
    Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 66





    Wire Range                               AWG

    4-20





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    1000 / 76

    1000 / 76

    1000 / 57

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    16

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Stainless Steel/-

    Terminal / Plating

    Copper / Tin Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.8

    Stripping Length                    mm

    18-20



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    ​Drawing Photo



    10.00mm Any Poles 600V 66A Copper Terminal Connector Green 4-20 AWG
