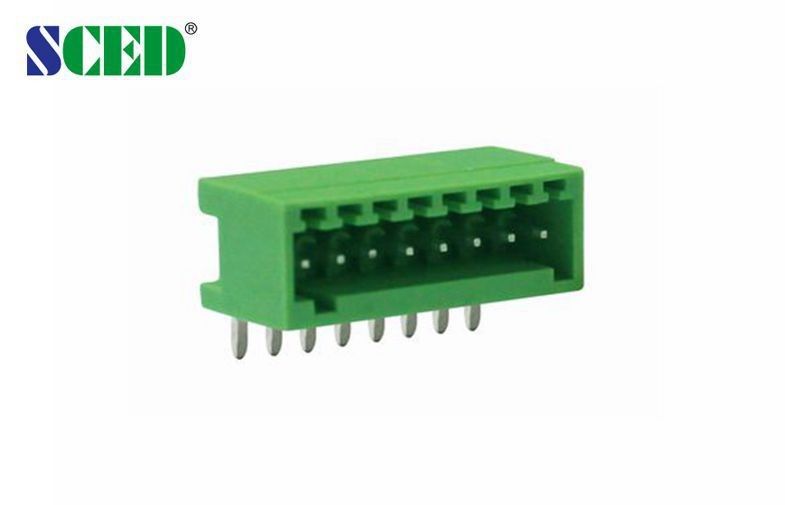

PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P

PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P

    • PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P
    • PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P
  • PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP254H-00V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 2.50mm
    Number Of Contacts: 2P-24P Rated Voltage: 150V
    Rated Current: 4A Color: Green
    Applications: Power Supply, Electric Lighting, Industry Control Certificate: CE
    Pin Dimension: 0.8*0.8 Material: PA66

    PA66 Plastic Male Connector 2.50mm Screwless  PCB Plug In Terminal Block 2P-24P



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..



    How to order:
    PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P



    ■Single Level;  □Double Levels;  □Triple Levels

    This
    male socket match with  female plug series: TP254P-01

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color

    you want.

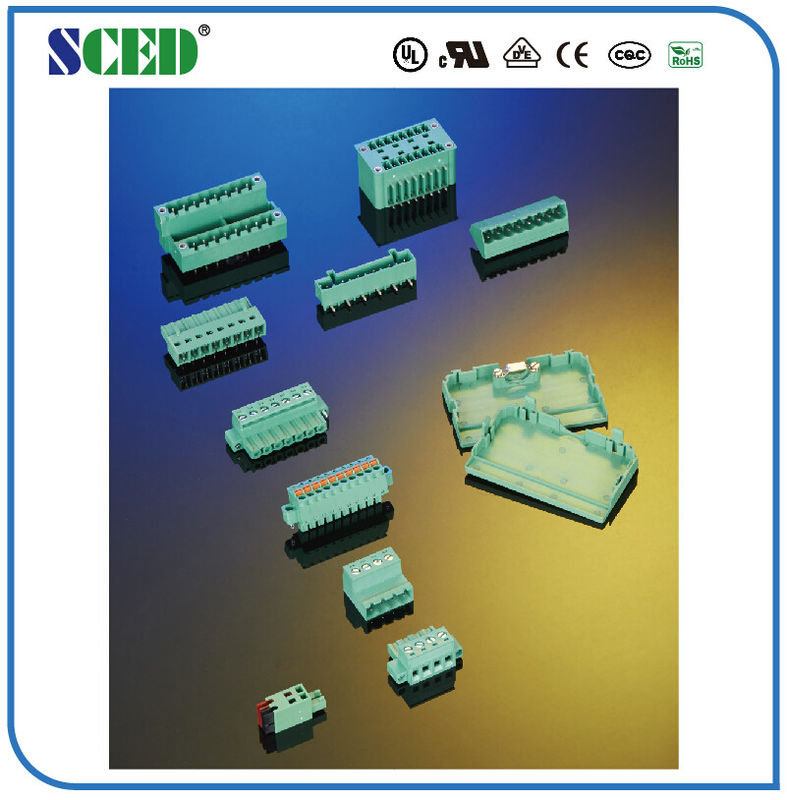

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    150 / 4





    IEC Technical Data







    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    160 / 4

    250 / 4

    250 / 4

    Rated Surge Voltage                     KV

    2.5

    2.5

    2.5





    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0 (THR: PA46 UL94, V-0)

    Clamp Cage / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter               mm

                   1.2

    Pin Dimension                      mm

                 0.8*0.8




    Competitive Advantage:




    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand





    Drawing photo:



    PA66 Plastic Male Connector Plug In Terminal Block 2.50mm Screwless PCB 2P-24P



    tag: plug in terminal block, Bent pin terminal block, male socket, green connector
