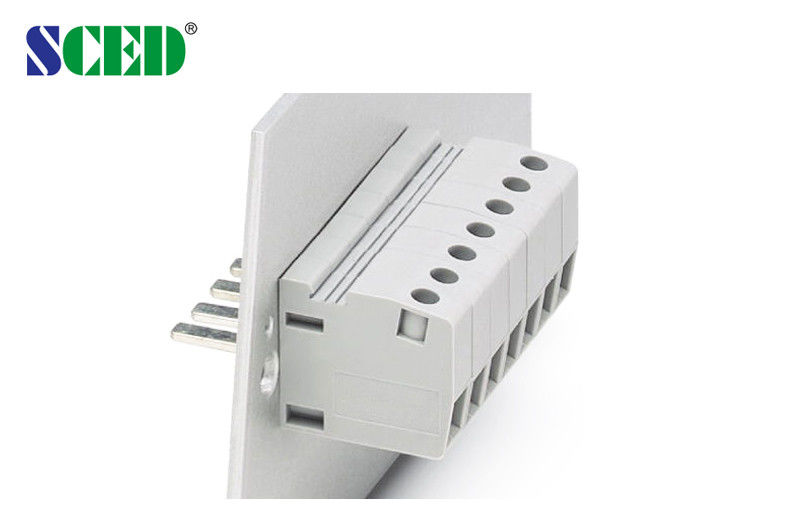

300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width

300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width

    • 300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width
    • 300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width
    • 300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width
  • 300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC and VDE etc.
    Model Number: TR-10N-07

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.45-0.85 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Current: 65A Voltage: 300V
    Insulation Material: PA66 Terminal Width: 10.1mm
    Screw: Steel Stripping Length: 11mm
    Wire Range: 6-24 AWG Inflammability Class: UL94, V-0
    Rated Surge Voltage: No Abnormal Within 1 Minute Contact Resistance: Less Than 8mΩ

    300V 65A Through Panel Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width



    Detailed product Description:



    Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment etc..

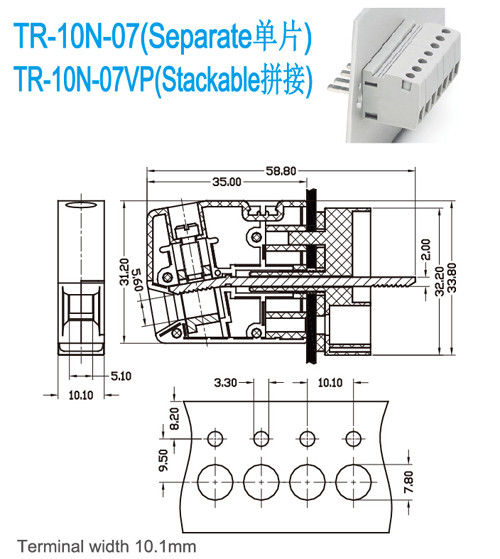

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 65



    600 / 5

    Wire Range                       AWG

    6-24



    6-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    10

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    11

    Screw / Torque                    / lbf.in

    M4 / 10.6-13



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand.

    300V 65A Feed Through Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width
