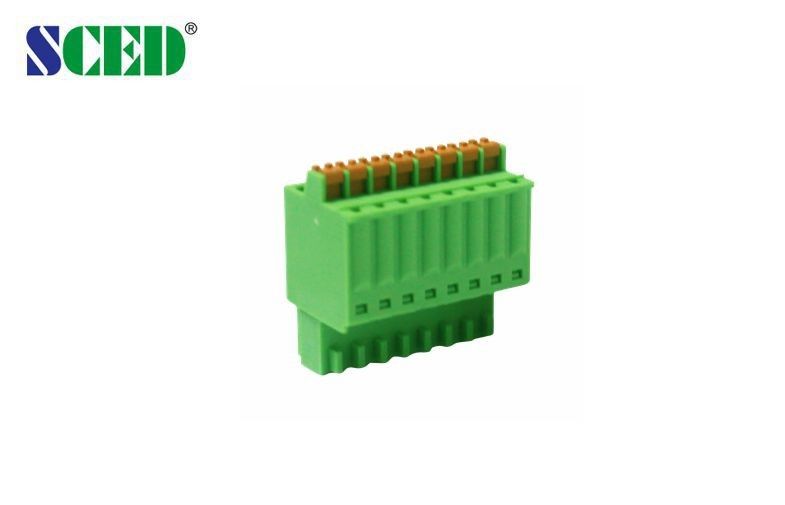

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector

  • 2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector
  • 2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector
2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP254P-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Spring Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 2.50mm
Number Of Contacts: 2P-24P Wire Range: 28-20 AWG
Rated Voltage: 150V Rated Current: 4A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

power terminal block connector

,

power distribution terminal block

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 150V 4A 2.50mm



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..



How to order:
2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 0



■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP254H-00 TP254H-00V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color

you want.

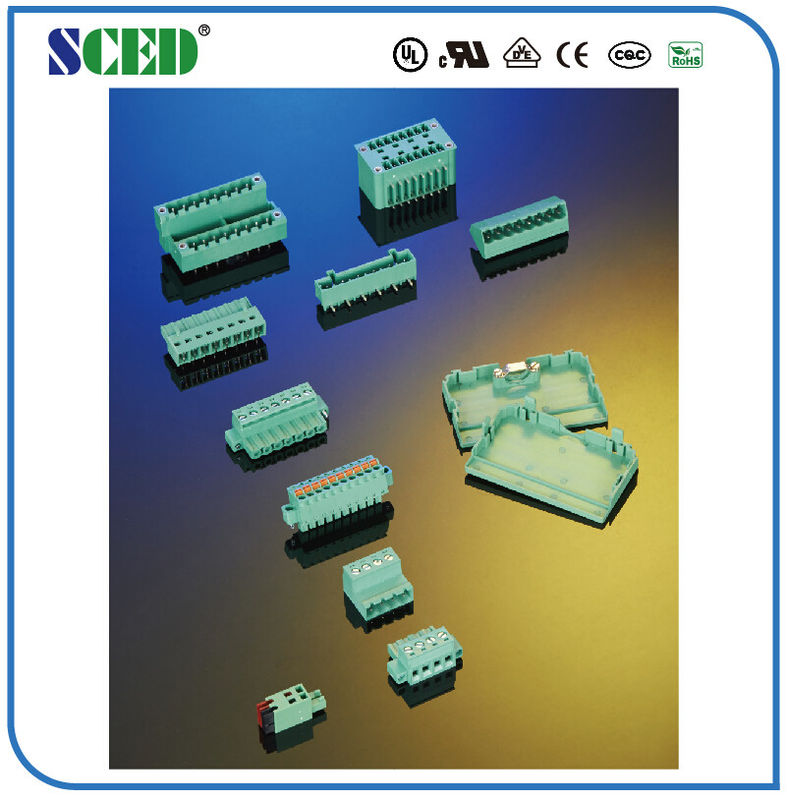

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

150 / 4





Wire Range                               AWG

28-20





IEC Technical Data







Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

160 / 4

250 / 4

250 / 4

Rated Surge Voltage                     KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

0.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Stainless steel

Contactor / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

               7

Screw / Torque                    / lbf.in






Competitive Advantage:




1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand





Drawing photo:



2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 1
