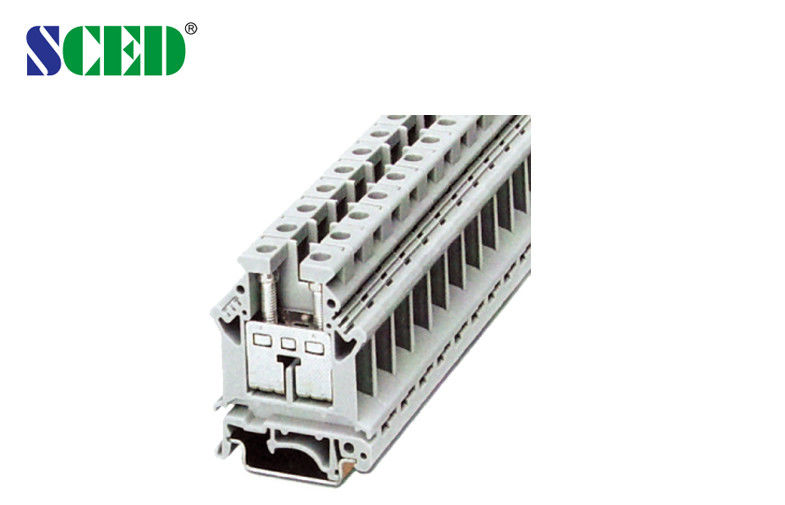

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

    • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
    • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
    • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
  • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC and VDE etc.
    Model Number: TR-16N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.45-0.85 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 working day
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 12.2mm Current: 101A
    Voltage: 800V Type: Din Rail
    Material: Brass Color: Grey
    Rated Surge Voltage: No Abnormal Within 1 Minute Inflammability Class: UL94, V-0
    Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width



    Detailed product Description:



    Terminal width: 12.2mm, 600V 85A, AWG:22-4, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    They can be used in: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

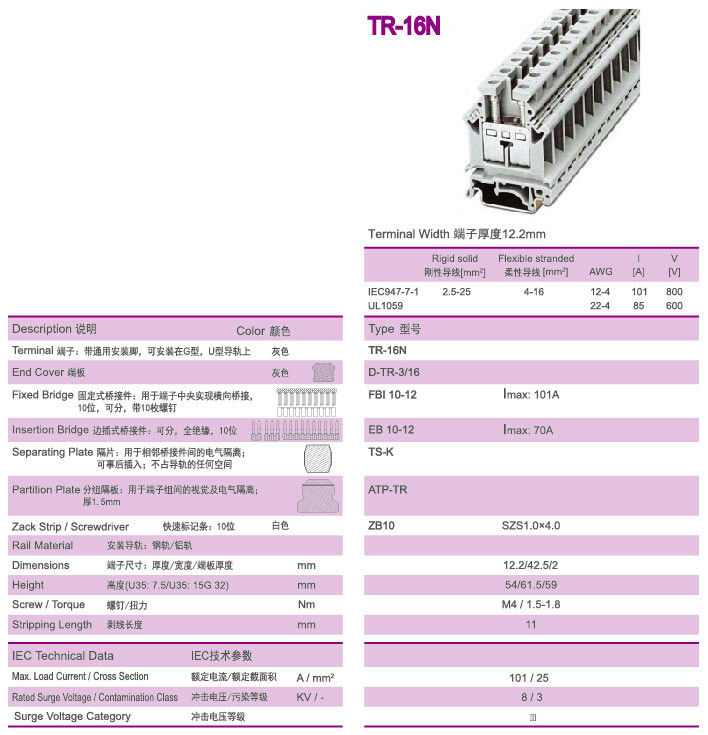

    Parameter and Drawing Specifications:

    Description                    Color

    Type

    Terminal                       Grey

    TR-16N

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal WidthEnd Cover                      Grey



    D-TR-3/16

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal WidthFixed Bridge



    FBI 10-12        Imax: 101A

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal WidthInsertion Bridge



    EB 10-12        Imax: 70A

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal WidthSeparating Plate



    TS-K

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal WidthPartition Plate



    ATP-TR

    Zack Strip                      White

    ZB10

    Screwdriver

    SZS 1.0×4.0

    Rail Material

    aluminum

    Dimensions                             mm

                12.2/42.5/2.0

    Height (U35: 7.5/U35: 15G 32)              mm

    54/61.5/59

    Screw / Torque                           Nm

    M4 / 1.5-1.8

    Stripping Length                          mm

    11

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

                 101 / 25

    Rated Surge Voltage / Contamination Class    KV / -

                  8 / 3

    Surge Voltage Category

                   Ⅲ



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response and good after-sales service
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
