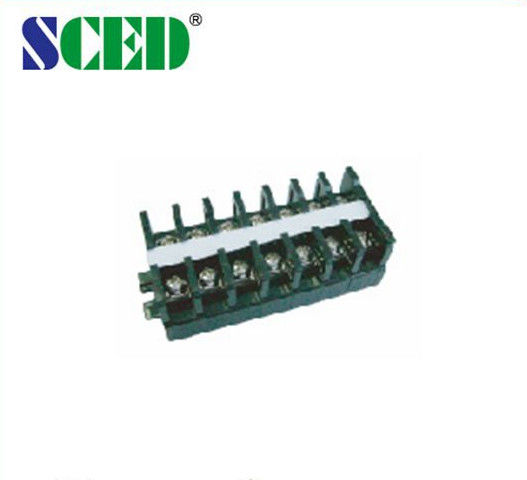

Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type

Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type

    • Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type
    • Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type
    • Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type
  • Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR20-02-M0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 10.80mm
    Number Of Contacts: Any Poles Available Wire Range: 24-12
    Rated Voltage: 600V Rated Current: 20A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    300V 20A Power Terminal Connector 10.8mm Panel Mounted Terminal Block Screw Barrier Type

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

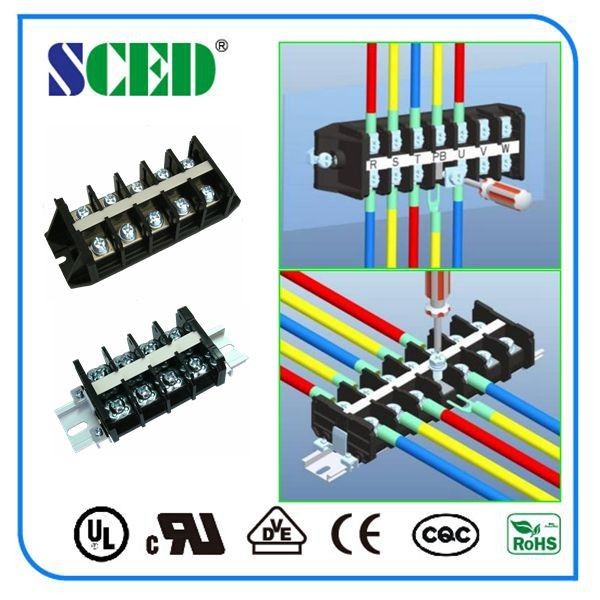

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


    How to order:
    Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type

    Applications:
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 20

    600 / 20



    Wire Range                               AWG

    24-12

    24-12



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    800 /20

    1000 / 20

    1000 / 20

    Rated Surge Voltage                      KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    3.5

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Conduction Board/ Plating

    Brass /Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                  mm

    9-10

    Screw Torque                      mm

    M4 / 10.6-13



    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

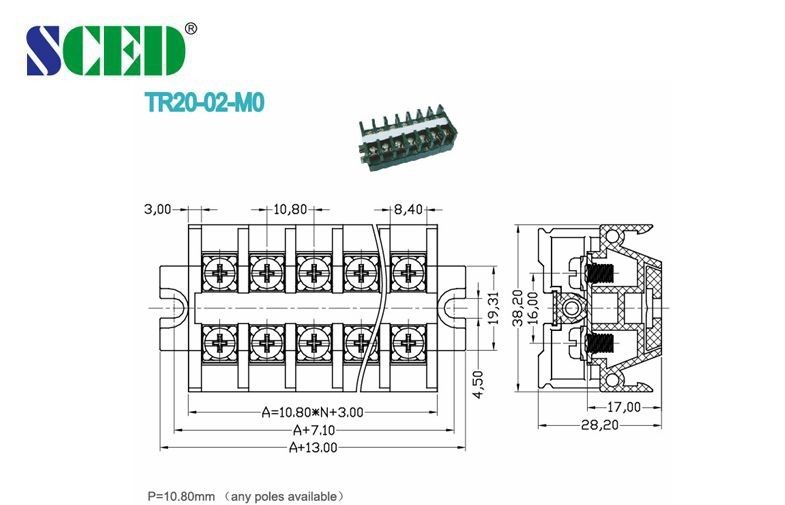

    Drawing Photo:



    Black PCB 10.8mm Panel Mounted Terminal Block Screw Barrier Type
