9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

    • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
    • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
    • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
  • 9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR20-00-2P

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 9.50mm
    Number Of Contacts: Any Poles Available Wire Range: 24-12
    Rated Voltage: 300V Rated Current: 20A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    9.50mm Screw barrier Terminal 2 Poles Electrical Panel Mount Terminal Block 300V 20A

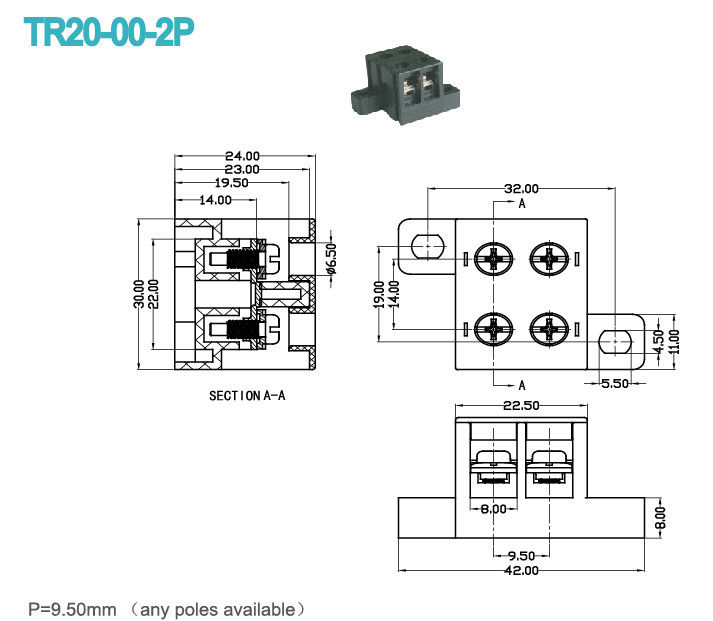

    Parameter and Drawing Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 20

    300 / 20



    Wire Range                               AWG

    24-12

    24-12



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    500 /20

    800 / 20

    1000 / 20

    Rated Surge Voltage                     KV

    6

    8

    8

    Rated Connecting Capacity           mm2

    3.5

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Conduction Board/ Plating

    Brass /Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                mm

    8-9

    Screw Torque                    mm

    M3.5 / 7-10

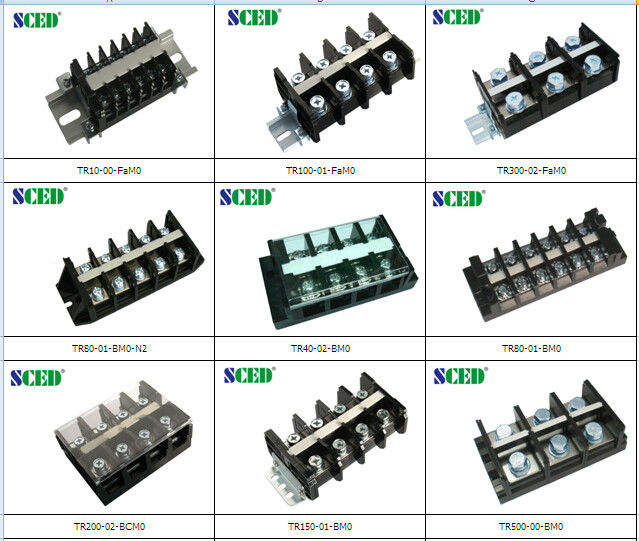

    How to order:
    9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A

    Applications:
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

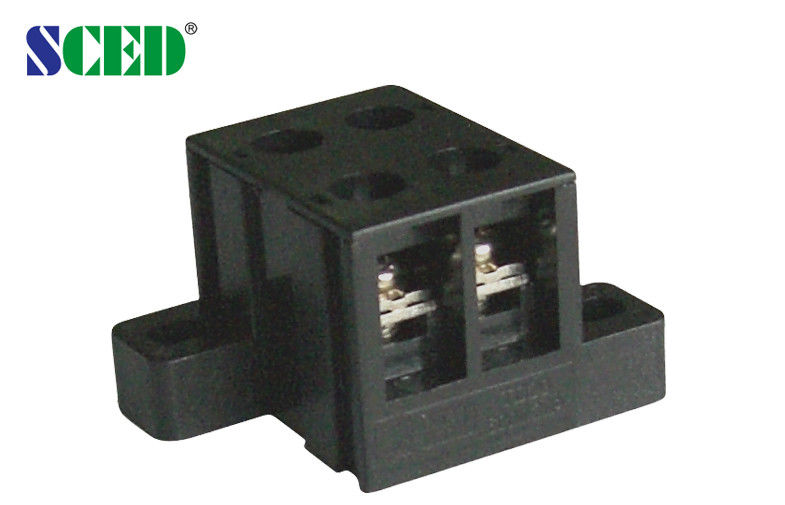

    Barrier Type Electrical Panel Mount Terminal Block 9.50mm 300V 20A Single Level

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks






    9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A


    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Factory Photo

     9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A



    Application:



    9.50mm Screw Barrier 2 Poles Panel Mount Terminal Block Electrical 300V 20A
