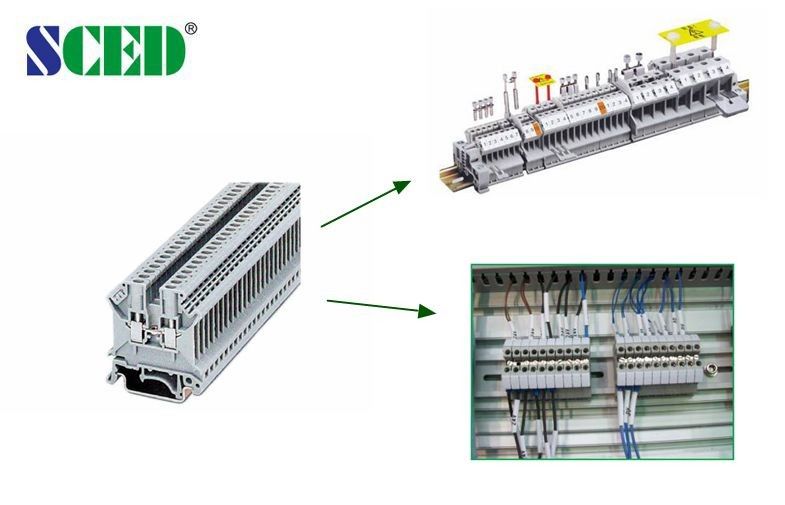

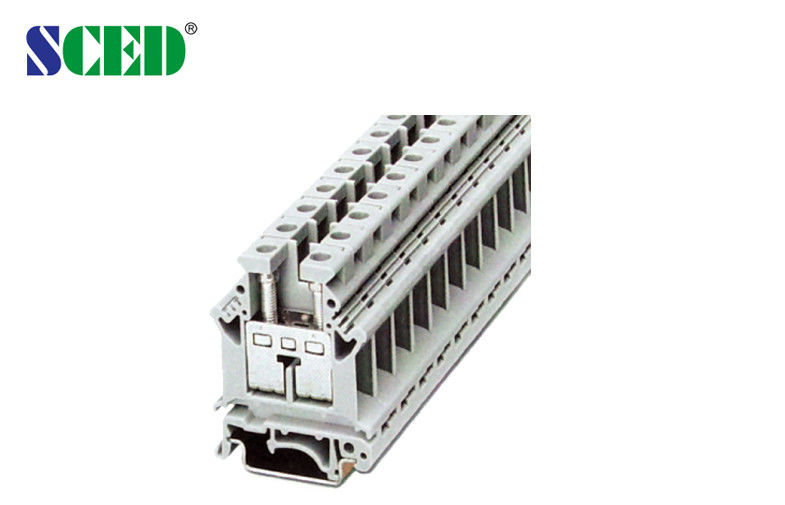

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

    • Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
    • Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
  • Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-16N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Wire Inlet: Right Angle Wire Inlet Terminal Width: 12.2mm
    Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Wire Range: 22-4
    Rated Voltage: 600V Rated Current: 85A
    Color: Grey Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    width 12.2mm AWG 22-4 Grey Din Rail Terminal Blocks for Electric Lighting 600V 85A, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



    Detailed product Description:

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Grey . Other colors also available, please refer to below How to Order and select the color you want.
    Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks


    How to order:
    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector


    Parameter a

    Description                    Color

    Type

    Terminal                       Grey

    TR-16N

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal ConnectorEnd Cover                      Grey


    D-TR-3/16

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal ConnectorFixed Bridge


    FBI 10-12        Imax: 101A

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal ConnectorInsertion Bridge


    EB 10-12        Imax: 70A

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal ConnectorSeparating Plate


    TS-K

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal ConnectorPartition Plate


    ATP-TR

    Zack Strip                      White

    ZB10

    Screwdriver

    SZS 1.0×4.0

    Rail Material

    aluminum

    Dimensions                             mm

    12.2/42.5/2.0

    Height (U35: 7.5/U35: 15G 32)              mm

    54/61.5/59

    Screw / Torque                           Nm

    M4 / 1.5-1.8

    Stripping Length                          mm

    11

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

                 101 / 25

    Rated Surge Voltage / Contamination Class    KV / -

                  8 / 3

    Surge Voltage Category

                   Ⅲ



    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Drawing Photo
    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

    Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
