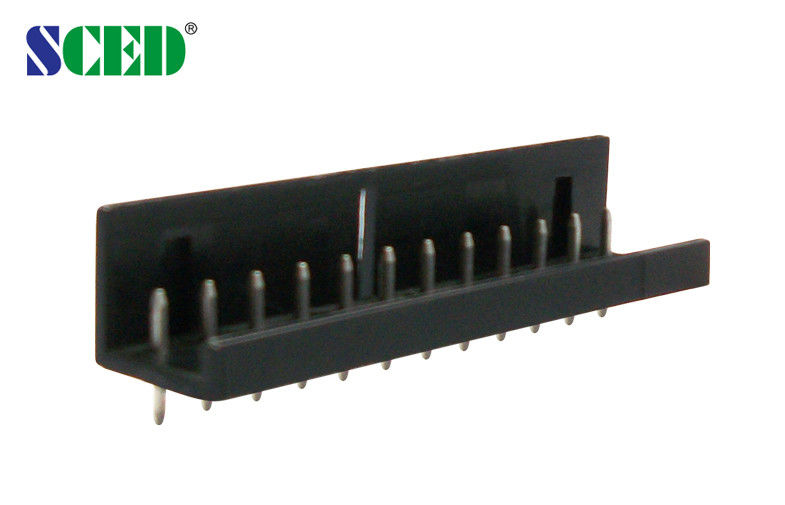

Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector

Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector

    • Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector
    • Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector
  • Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP508H-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 5.08mm Color: Black
    Weight: 2.6g Material: PA66
    Terminal: Brass Poles: 2-24 Poles



    Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector



    Details:



    Pitch 5.08mm match with TP508P-08



    □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

    ■Single Level; □Double Levels; □Triple Levels

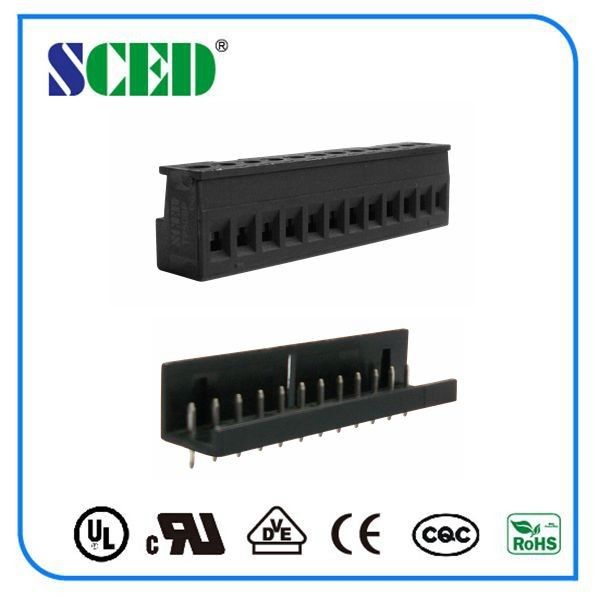

    This male header match with female plugs’ series: TP508P-08



    Parameter Data



    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
    Rated Surge Voltage KV 4 4 4
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Terminal / Plating Brass / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Pin Dimension mm 1.0 x 1.0





    Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response
    • Full range products for selection
    • Flexible to design the exact part per customers’ demand





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Drawing Photo



    Plug In 300V 10A Terminal Block Connectors 2P - 24P Black Male Connector

    Tag:

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
