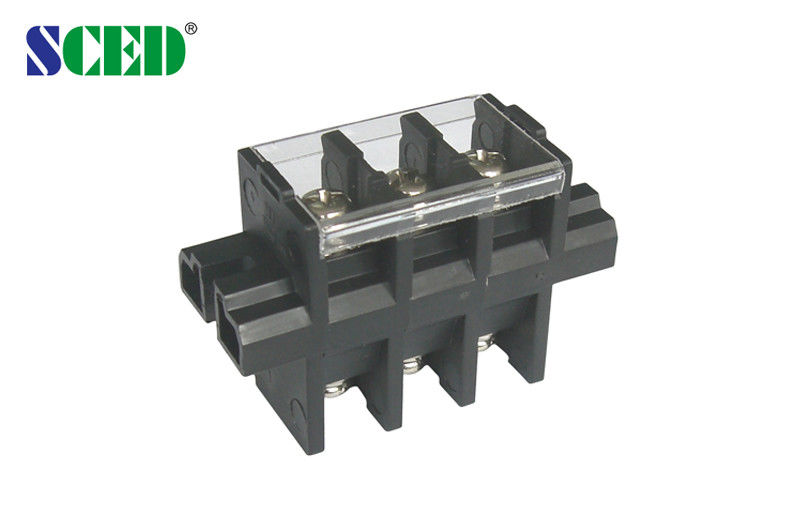

Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal

Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal

    • Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal
    • Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal
  • Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal

    Product Details:

    Place of Origin: SHENZHEN CHINA
    Brand Name: SCED
    Certification: CE ROHS
    Model Number: TD40-01-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Packaging Details: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 7-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Feed Through Pitch: 13.00mm
    Screw: Steel M5 Torque: 16-18 Ibf.in
    Conduction Board: Brass Insulation Material: PBT

    Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal



    1. Details:



    The current : 40A    Voltage: 600V

    Insulation Material: PBT     Inflammability Classl: UL94, V-0



    2. Description:

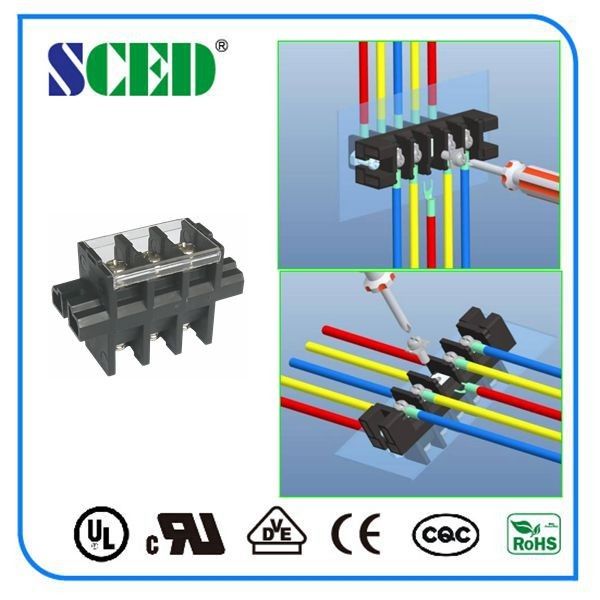

    1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
    the line before and after, a into a,



    2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.



    3. Current: 75A.



    3. Applications:



    1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



    2. Industry Control, Automation,



    3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



    Elevator, etc..



    4. Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 40

    600 / 40

    600 / 5

    Wire Range                       AWG

    8-22

    8-22

    8-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    800 / 40

    1000 / 40

    1000 / 40

    Rated Surge Voltage                 KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    8

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    Stripping Length                    mm

    8-10

    Screw / Torque                    / lbf.in

    M5 / 16-18



    5. Feature Advantage:



    1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


    2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


    3. It has very good mechanical properties and electrical properties,





    6. Competitive Advantage:



    1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



    2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



    3. Discount offered is based on qty.



    Pitch 13mm Electrical Connector Block Black Mounted Panel Screw Terminal
