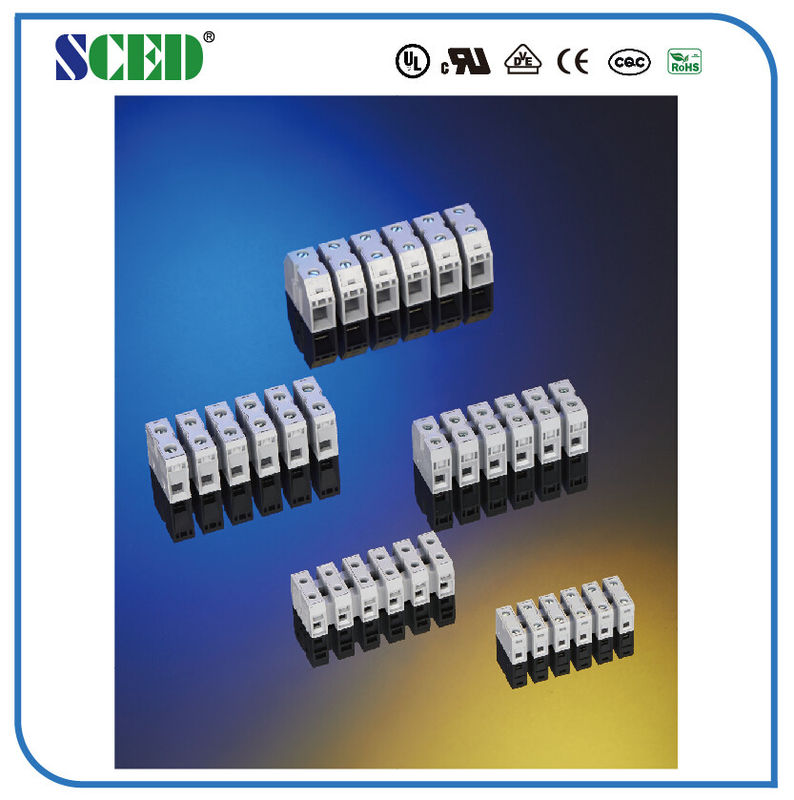

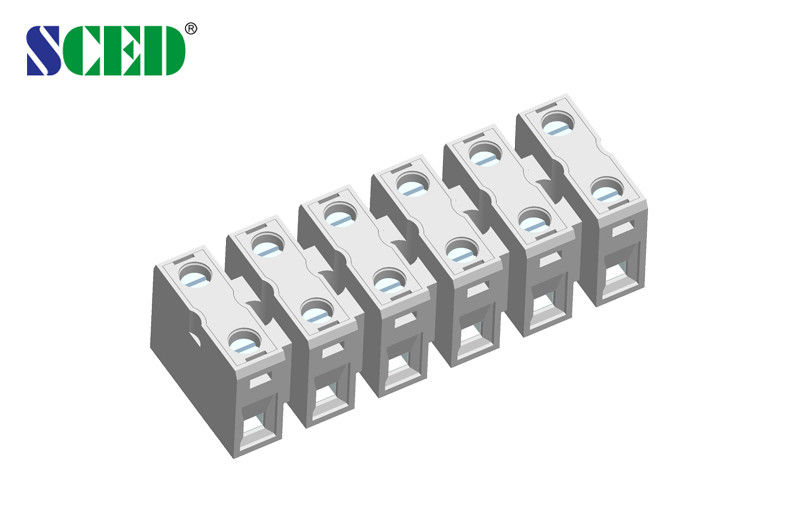

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

    • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
    • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
    • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
  • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL,CUL,CE,CQC and VDE etc.
    Model Number: TR-3N-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.102-0.205
    Packaging Details: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 10mm Pole: 2-16 Poles Available
    Current: 20A Voltage: 600V
    Wire Range: 12-18AWG Plastic: PA66
    Inflammability Class: UL94-V0 Stripping Length: 5-6mm
    Screw: M3 Plating: Nickel Plated

    2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage



    Detailed product Description:



    Pitch10.00mm, 600V 20A, 2-16P, Feed-Through Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Grey. Other colors also available.



    Applications:

    1.PCB, Frequency Converters, Server Site, Switch

    2.Power Supply, Electric Lighting, Industry Control, Automation

    3.Rail Transportation, Communication, Electric Power

    4.Security, Medicine Equipment, Military, Elevator, etc..

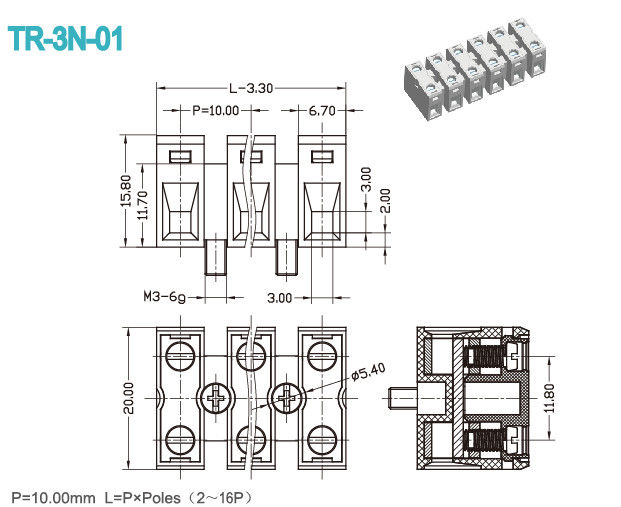

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 20

    600 / 20



    Wire Range                       AWG

    12-18

    12-18



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    800 / 32

    1000 / 32

    1000 / 32

    Rated Surge Voltage                 KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Clamp Cage / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    5-6

    Screw / Torque                    / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. 10 main series and more than 1000 models for selection
    5. OEM and ODM service can be provided
