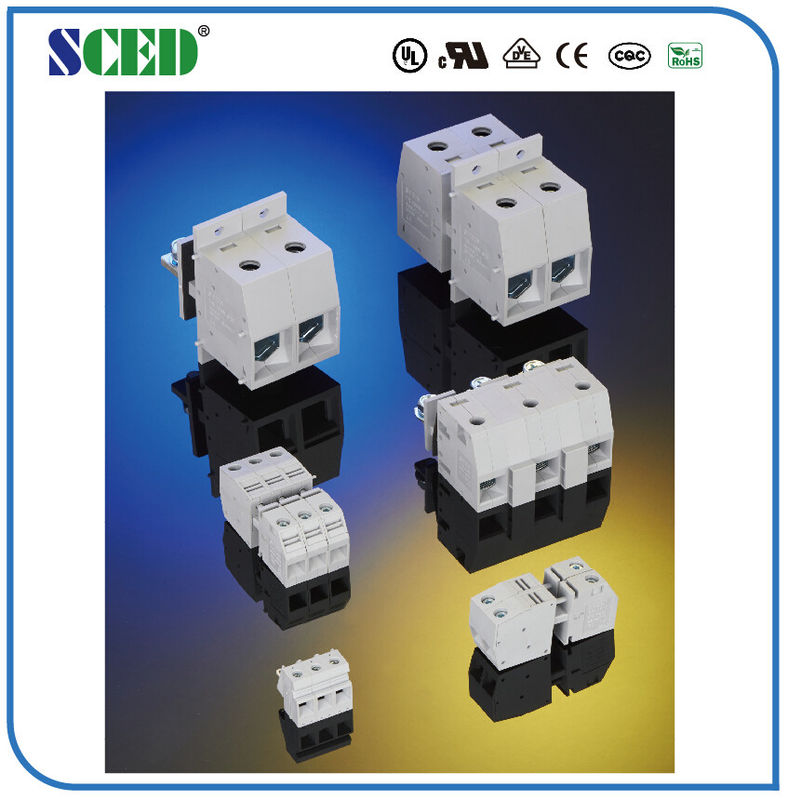

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

    • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
    • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
    • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
  • 85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL,CUL,CE,CQC and VDE etc.
    Model Number: TR-16N-03

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.45-0.92
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 12.1mm Plastic: PA66
    Current: 85A Voltage: 600V
    Conduction Board: Copper Plating: Tin Plated
    Screw: Steel Contact Resistance: Less Than 8mΩ
    Wire Range: 4-20 AWG Stripping Length: 16mm

    85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width



    Detailed product Description:



    Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Black. Other colors also available.



    Applications:

    1.They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting, 2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 85



    600 / 5

    Wire Range                       AWG

    4-20



    4-20

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 101

    800 / 101

    1000 / 101

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    16

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel / Nickel Plated

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    16

    Screw / Torque                    / lbf.in

    M5 / 22-25



    ompetitive Advantage:



    1. good quality
    2. reasonable price
    3. good after-sales service
    4. full range products for selection
    5. Flexible to design the exact part per customers’ demand

    85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
